0036 1 406 98 08
SKU
PBK-810C
Micro switch push button 86 x 86 mm with INOX shield - NO/NC
€11.00
Description
PBK-810C - Micro switch push button 86 x 86 mm with INOX shield - NO/NC
Micro-switch push buttons are available in a variety of designs, shapes and sizes. They can be recessed or surface mounted, but one thing they all have in common is that they are very simple to install and use.
These pushbuttons are not suitable for direct control of electromechanical, electromagnetic locks and for transmitting voltage outputs, even in the short term, due to their physical design and operation. Even if the load data indicate that they can. For such options, relays and relay modules need to be inserted in circuits or can be used for relay outputs of access panels and controllers. They are ideal when a door needs to restrict access in one direction only, but allows free movement in the other direction.
These pushbuttons are not suitable for direct control of electromechanical, electromagnetic locks and for transmitting voltage outputs, even in the short term, due to their physical design and operation. Even if the load data indicate that they can. For such options, relays and relay modules need to be inserted in circuits or can be used for relay outputs of access panels and controllers. They are ideal when a door needs to restrict access in one direction only, but allows free movement in the other direction.

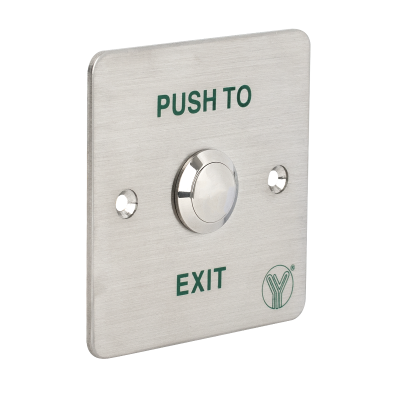

The PBK-810C is a simple micro switch pushbutton with a brushed stainless steel shield, "PUSH TO EXIT" and NO/NC output. Thanks to its wiring, it is easy to plug in and can be surface mounted with an optional mounted back box.
Downloads
More Information
| Operating mode/Type of device | Push button |
|---|---|
| Switch type | Microswitch |
| Type of switching | NO/NC |
| Number of switches | 1 |
| Controlled output current rating | 3A @ 36V DC |
| Controlled output timable | No |
| Tamper protection | none |
| Dimension of faceplate | 86 x 86 mm |
| Mortise dimension | Ø24 x 24 mm |
| Environmental temperature | -10°C - +55°C |
| Humidity tolerance (non-condensing) | max. 95% |
| IP rating | unclassified |
| IK rating | None |
|---|---|
| Mounting | flush mounted |
| Installation area | indoor |
| Housing material | metal |
| Material | Plastic and metal |
| Dimensions | 86 x 86 x 29 mm |
| Gross weight | 171 gr |
| Package contents | screw set, switch, cable (for connection) |
| Compatible devices | MBB-800B-P, MBB-800B-PM, MBB-811C-M, MBB-B-SS-H, M86-42-1 |
| Manufacturer | YLI |
| Warranty | 12 months |
| Certificates | CE, LVD (2014/35/EU), EMC (2014/30/EU), RoHS |
| Product category | A |
