SKU
MPB-085S

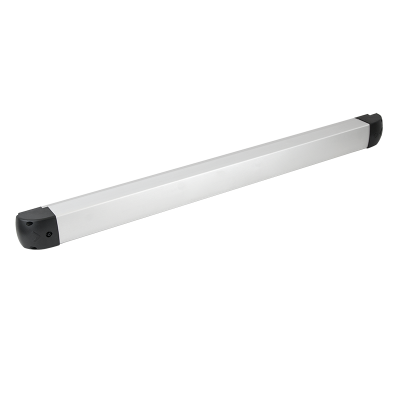

MPB-085S Micro switch push bar
€94.00
Description
MPB-085S - Micro switch push bar
The MPB-085S is a micro switch push bar for escape doors. The device has two micro-switch outputs with NO/NC outputs so it can control either a live opening or a live closing electric lock.
More Information
| Operating mode/Type of device | Push Bar Switch |
|---|---|
| Switch type | Microswitch |
| Type of switching | NO/NC |
| Number of switches | 2 |
| Controlled output current rating | 5A @ 24V DC, 3A @ 125V AC |
| Controlled output timable | No |
| Tamper protection | none |
| Environmental temperature | 0°C - +70°C |
| Humidity tolerance (non-condensing) | max. 85% |
| IP rating | unclassified |
| IK rating | None |
| Mounting | surface mounted |
|---|---|
| Installation area | indoor |
| Housing material | metal and plastic ABS |
| Material | Plastic and metal |
| Dimensions | 850 x 60,5 x 60,5 mm |
| Gross weight | 1980 gr |
| Package contents | screw set, panic bar |
| Manufacturer | SILIN |
| Warranty | 12 months |
| Certificates | CE |
| Product category | A |
