0036 1 406 98 08
SKU
SCP-100-yo
Resetable switch call point for extinguisher system starters - yellow
€22.00
Description
SCP-100-yo - Resetable switch call point for fire extinguishing starter - yellow
Almost everyone has encountered manual call points as an indispensable part of alarm and access control systems. There are two basic versions, those with a push-in tab and those with breakable glass. They are available in different colours, each colour being "dedicated" to a different system, but this can be deviated from if the task at hand so requires.

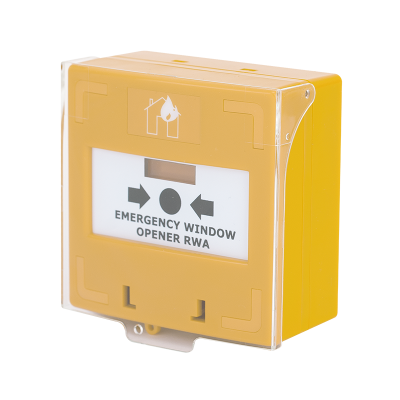

The SCP-100-yo is the yellow version of the SCP-100 resetable switch call point series for fire extinguishing starter. The device also includes a sealable protective cover to avoid accidental alarms.
More Information
| Operating mode/Type of device | Manual call point |
|---|---|
| Switch type | Microswitch |
| Type of switching | NO/NC |
| Number of switches | 3 |
| Controlled output current rating | 3A @ 125V DC |
| Controlled output timable | No |
| Tamper protection | none |
| Environmental temperature | -30°C - +70°C |
| Humidity tolerance (non-condensing) | max. 95% |
| IP rating | unclassified |
| IK rating | None |
| Mounting | surface mounted |
|---|---|
| Installation area | indoor |
| Housing material | plastic ABS |
| Material | Plastic and metal |
| Dimensions | 86 x 86 x 43 mm (without cover) |
| Gross weight | 173 gr |
| Package contents | screw set, manual call point, reset/test key, seal |
| Compatible devices | SCP|COVER, SCP|KEY, SCP|SEAL(P10) |
| Manufacturer | SOCA |
| Warranty | 12 months |
| Certificates | CE, RoHS |
| Product category | A |
