0036 1 406 98 08
SKU
CF3-WIFI
Drip-proof (IP66), WiFi, SA card reader & code lock - fingerprint
€61.00
Description

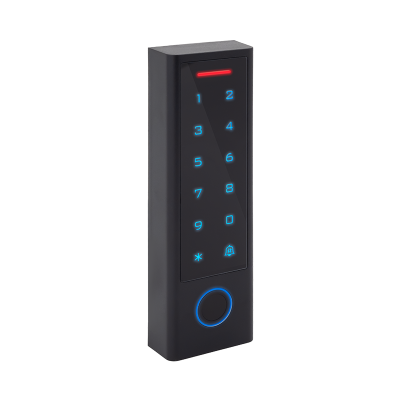

CF3-WIFI - Drip-proof (IP66), WiFi, standalone card reader & code lock - fingerprint
CF3-WIFI is a fingerprint and card reader with a keyboard that combines the advantages of its most popular counterparts (such as managing guest or panic users) in one device, while programming is done in the usual simple way through the familiar program menu. With its IP66 rating it is also suitable for outdoor installation, but due to its plastic housing, it's not vandal-proof.
If that wasn't enough, the device is enhanced by a mobile app developed by Tuya, which opens up a wide range of possibilities. Through WiFi, the device can:
- Be remotely unlocked and configured;
- Set codes remotely, including time-limited or single-use PINs;
- Be integrated into a smart home system;
- Be logged without any wired connection.
The device's door sensor detection can be freely turned on or off. Ensure this function is only enabled when necessary and when a door sensor is in use. If activated without a sensor, the input might trigger accidentally, causing the device to send a false tampering alarm (anti-prying alarm) in the app.
Users can be identified via card, code, fingerprint, or even a combination of card and code. Additionally, the application allows for remote access via phone. The device's capacitive fingerprint reader ensures reliable biometric identification in all types of environments.
More Information
| Controller's type | stand-alone biometric reader |
|---|---|
| RFID frequency | 125 kHz EM |
| Door relays | 1 door 2 way (with RFID reader) |
| Lock output type | relay NO / NC |
| Programming method | with master cards, with master fingers, from keypad, from smartpPhone application |
| Capacity | 1,000 users (99 normal fingerprint, 1 master finger, 888 normal, 10 guest, 2 panic) |
| Backup possibility | Copy database to another device |
| Software / application | TUYA |
| Connectivity | Wiegand, WiFi, Tuya |
| Wiegand Interface | input, output |
| Wiegand bit length | 26 - 58-bit (adjustable) |
| RS-485 interface | None |
| Reading distance | 2 ~ 6 cm |
| Event log capacity | unlimited (only via mobile app) |
| Opening method(s) | PIN code, RFID card, fingerprint, mobile app |
| Unlock time | 1 ~ 99 seconds |
| Inputs | Door Release button, Door sensor, RFID reader |
| Outputs | Lock output, Bell output, Alarm output, Wiegand output |
| Keypad? | Yes |
| Keypad backlight | Switchable (Number backlight) |
| PIN length | 4-6 digits |
| Vandalproof? | No |
| LED feedback | Yes |
|---|---|
| Buzzer feedback | Yes |
| User Interface | LED, Voice |
| Anti-passback | None |
| Interlock | Yes (Simple) |
| Passage mode | None |
| Multicard opening | Yes |
| Guestuser | Yes (Usage limit), Yes (Date limit) |
| Power supply | 12 - 18 V |
| Type of power | DC |
| Current draw | 60 mA (idle), 150 mA (active) |
| Mounting | wall-mount |
| Installation environment | indoor, outdoor |
| Index of protection (water and dust) | IP66 |
| Dimension | 148 × 43.5 × 22 mm |
| Accessories in the package | screw set, hex key, diode/diodes (based on the number of lock relays) |
| Tamper protection | optical |
| Environment temperature ( °C ) | -30°C ~ +60°C |
| Humidity tolerance | 0 ~ 98% (non condensing) |
| Warranty | 12 month |
| Certificates | CE |
| Product category | A |
