SKU
K35EM-W
Waterproof (IP68), standalone card reader & code lock - EM
€36.00
Description

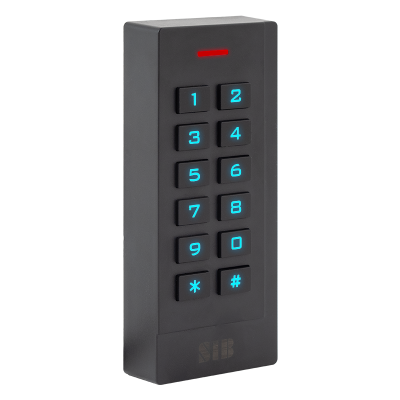

K35EM-W - Waterproof (IP68), standalone card reader & code lock - EM
Standalone card readers are high-security devices suitable for controlling almost any access point. Their major advantage is that, beyond card identification, they can independently control door locks, eliminating the need for a separate door control panel in the system. Their installation and use are extremely simple.
K35EM-W is a stylish plastic-housed, waterproof card reader and code lock. It can store up to 10,000 users.
With its IP68 rating, it is suitable for outdoor use. It can be used as an auxiliary reader, and a separate auxiliary reader can also be connected to it.
More Information
| Product category | A |
|---|---|
| Type of device | RFID reader, code-lock |
| Casing | plastic case |
| Type of readable cards | EM |
| Readable frequency | 125 kHz |
| Keyboard | Yes |
| PIN length | 4 - 6-digit |
| Installation | surface-mounted |
| Installation environment | outdoor (without protection) |
| Environmental protection rating | IP68 |
| Vandalproof protection | none |
| Capacity | 10,000 users |
| Method of security backup | none |
| Methods of adding users | via built-in keyboard, via master cards |
| Communication methods | can manage Wiegand reader, can work as Wiegand reader |
| Wiegand input bit rating | 26 bit |
| Wiegand output bit rating | 26 bit |
| Power supply | 12-24 V DC |
| Power consumption | <35 mA (idle) |
| Dimensions | 120 × 50 × 22 mm |
|---|---|
| Reading range | 3-5cm |
| Language of internal menu | none |
| LED | Yes |
| Buzzer | Yes |
| Keyboard lighting | yes (can be turned off) |
| Number of controllable doors | 1 |
| Lock output type | dry contact (relay, NO/NC/COM) |
| Lock output load capacity | 1A |
| Inputs | push button, Wiegand |
| Outputs | alarm, Wiegand |
| Opening methods | only card, only PIN, card and PIN, card or PIN |
| Opening signal length (if used in timed mode) | 0-300 seconds |
| Bistable mode | Yes |
| Access control functions | normal, multicard opening |
| Events that cause alarm | no alarm |
| Display | No |
| Working temperature | -40°C ~ +60°C |
| Humidity tolerance | 0% ~ 95% |
| Certificate | CE |
