0036 1 406 98 08
SKU
K5-C
Drip-proof (IP66), vandal-proof standalone code lock
€49.00
Description

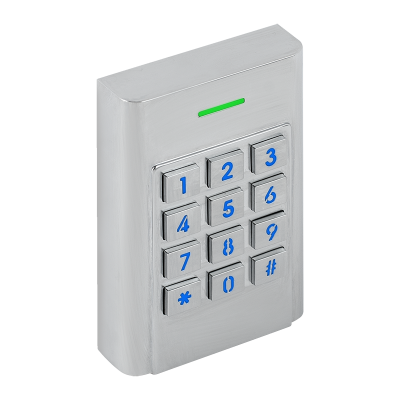

K5-C - Drip-proof (IP66), vandal-proof standalone code lock
Standalone card readers are high-security devices suitable for controlling almost any access point. Their major advantage is that, beyond card identification, they can independently control door locks, eliminating the need for a separate door control panel in the system. Their installation and use are extremely simple.
K5-C is an outdoor, vandal-proof standalone code lock, ideal for locations where a simpler, lower-security access control solution is sufficient. Programming is done directly from its keyboard. The device also features a guest code function, allowing for codes that are valid only for a single use and then automatically expire.
The package includes the code lock, two screws with wall plugs for surface mounting, a diode for lock connection, and a Torx key for removing the backplate.
Downloads
More Information
| Product category | A |
|---|---|
| Type of device | code-lock |
| Casing | metal case |
| Keyboard | No |
| PIN length | 4 - 6-digit |
| Installation | surface-mounted |
| Installation environment | outdoor (with rain protection) |
| Environmental protection rating | IP66 |
| Vandalproof protection | metal case, sabotage protection |
| Capacity | 1,000 users (990 normal, 10 guest) |
| Method of security backup | none |
| Methods of adding users | via built-in keyboard |
| Wiegand input bit rating | none |
| Wiegand output bit rating | none |
| Power supply | 9-18 V DC |
| Power consumption | 50 mA (idle); 80 mA (active) |
| Dimensions | 66 × 98 × 22 mm |
| Reading range | ~5 cm |
| Language of internal menu | none |
| LED | Yes |
|---|---|
| Buzzer | Yes |
| Keyboard lighting | yes (cannot be turned off) |
| Number of controllable doors | 1 |
| Lock output type | dry contact (relay, NO/NC/COM) |
| Lock output load capacity | 3 A |
| Inputs | push button |
| Tamper protection | yes (via optical sensor) |
| Opening methods | only PIN |
| Opening signal length (if used in timed mode) | 0.05 seconds / 2 ~ 99 seconds |
| Bistable mode | Yes |
| Access control functions | normal, open with guest PIN (PIN that can onbly be used x times)) |
| Events that cause alarm | multiple failed PIN attempts |
| Alarm timing | 0 ~ 3 minutes |
| Display | No |
| Working temperature | -40°C ~ +60°C |
| Humidity tolerance | 10% ~ 90% |
| Warranty (for legal entities) | 12 months |
| Manufacturer | SECUKEY |
