SKU
M008EM-W
Waterproof (IP68), vandal-proof standalone card reader - EM
€32.30
Description

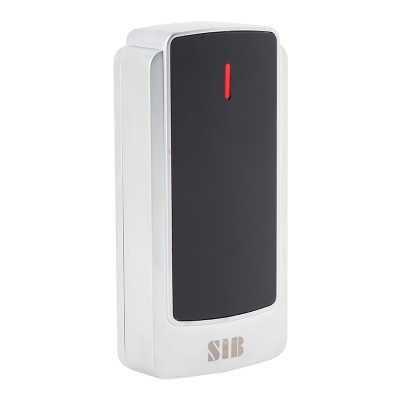

M008EM-W - Waterproof (IP68), vandal-proof standalone card reader - EM
Standalone card readers are high-security devices suitable for controlling almost any access point. Their major advantage is that, beyond card identification, they can independently control door locks, eliminating the need for a separate door control panel in the system. Their installation and use are extremely simple.
M008EM-W is an aesthetically designed, waterproof standalone card reader for 125 kHz EM cards. Its vandal-proof metal housing and IP68 rating make it an excellent choice for outdoor use. The use of master cards simplifies operation, and the device is programmed via remote control. Its energy-efficient design ensures a long lifespan. The reader can manage an auxiliary reader through Wiegand interface and can also function as an auxiliary reader itself.
Downloads
More Information
| Product category | A |
|---|---|
| Type of device | RFID reader |
| Casing | metal case |
| Type of readable cards | EM |
| Readable frequency | 125 kHz |
| Keyboard | No |
| Installation | surface-mounted |
| Installation environment | outdoor (without protection) |
| Environmental protection rating | IP68 |
| Vandalproof protection | metal case |
| Capacity | 10,000 users |
| Method of security backup | memory can be copied |
| Methods of adding users | via master cards, via remote control |
| Communication methods | can manage Wiegand reader, can work as Wiegand reader |
| Wiegand input bit rating | 26 bit |
| Wiegand output bit rating | 26/34 bit |
| Power supply | 12 V DC |
| Power consumption | <35mA (idle) <100mA (active) |
| Dimensions | 100 × 50 × 20 mm |
| Reading range | 2 ~ 5 cm |
|---|---|
| Language of internal menu | none |
| LED | Yes |
| Buzzer | Yes |
| Keyboard lighting | no |
| Number of controllable doors | 1 |
| Lock output type | dry contact (relay, NO/NC/COM) |
| Lock output load capacity | <1 A |
| Inputs | push button, Wiegand |
| Outputs | Wiegand |
| Opening methods | only card |
| Opening signal length (if used in timed mode) | 0 ~ 99 seconds |
| Bistable mode | Yes |
| Access control functions | normal |
| Display | No |
| Working temperature | -20°C ~ +60°C |
| Humidity tolerance | 0 ~ 95% |
| Warranty (for legal entities) | 12 months |
| Certificate | CE |
