0036 1 406 98 08
SKU
S-BOARD
One-door mini access control panel - Wiegand
€37.30
Description
S-BOARD - One-door mini access control panel - Wiegand
Door controller panels are highly versatile devices, as they allow for the installation of custom systems with various auxiliary readers and locks without relying on the design and limitations of standalone controllers during access control setup.
S-BOARD is a compact controller panel for Wiegand readers. Depending on the type of reader, it works with any Wiegand 26-37 bit system. Programming is extremely simple and can be done via its remote control.

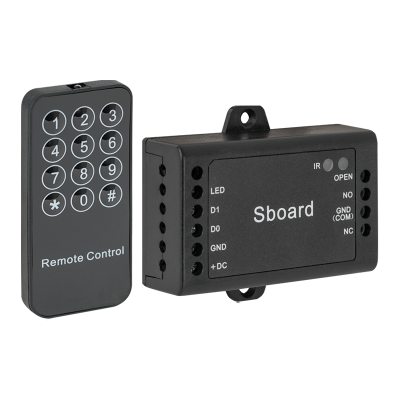

The package includes the controller, a remote control, a diode, 2 screws with wall plugs, and a small screwdriver.
Downloads
More Information
| Product category | A |
|---|---|
| Type of device | depends on external reader |
| Casing | plastic case |
| Type of readable cards | depends on reader |
| Readable frequency | depends on reader |
| Keyboard | No |
| PIN length | 4 - 6-digit |
| Installation | surface-mounted |
| Installation environment | indoor |
| Environmental protection rating | no rating |
| Vandalproof protection | external relay unit |
| Capacity | 1,000 users |
| Method of security backup | memory can be copied |
| Methods of adding users | via master cards, via remote control |
| Communication methods | can manage Wiegand reader |
| Wiegand input bit rating | 26 ~ 37 bit |
| Wiegand output bit rating | none |
| Power supply | 9-24 V DC |
| Power consumption | 20 mA (idle) |
| Dimensions | 65 × 54 × 19 mm |
| Reading range | depends on reader |
| Language of internal menu | none |
|---|---|
| LED | Yes |
| Buzzer | Yes |
| Keyboard lighting | no |
| Number of controllable doors | 1 |
| Lock output type | dry contact (relay, NO/NC/COM) |
| Lock output load capacity | 2 A (30 V DC) |
| Inputs | push button, Wiegand |
| Tamper protection | no |
| Opening methods | only card, card and PIN, card or PIN |
| Opening signal length (if used in timed mode) | 1 ~ 99 seconds |
| Bistable mode | Yes |
| Access control functions | normal, multicard opening |
| Events that cause alarm | no alarm |
| Alarm timing | none |
| Display | No |
| Working temperature | -40°C ~ +60°C |
| Humidity tolerance | 0% ~ 90% |
| Other properties | compatibility with any Wiegand reader; supports 4-bit, 8-bit, and 10-bit keyboard formats; the Wiegand output is only for data transfer |
| Warranty (for legal entities) | 12 months |
| Certificate | CE, DOC |
