SKU
PRO-RF-T-bk
Network access control terminal for 125 kHz EM cards - black
€518.00
Description
PRO-RF-T-bk - Network access control terminal for 125 kHz EM cards - black
Network access control terminals offer modern aesthetics and high-level security, making them a valuable addition to any environment. Their primary advantage is the ability to be configured and managed via software from a computer, with data extraction made convenient for users.

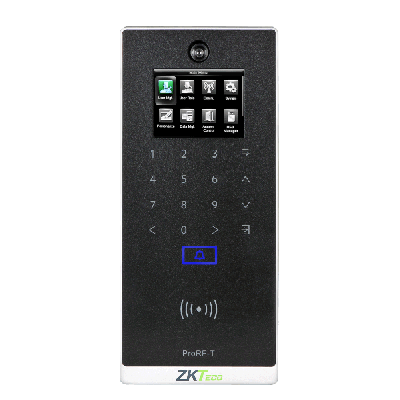

PRO-RF-T is a network access control terminal equipped with an RFID card reader for 125kHz EM cards, a touchscreen, and a built-in camera. You can program it directly using the touchscreen or via software when connected to a computer. With its NO/NC relay output, it can also control locks. Security is further enhanced with built-in tamper protection.
The software requires a one-time license purchase. For obtaining the license, please contact us!
Downloads
More Information
| Product category | B |
|---|---|
| Type of device | RFID reader, code-lock |
| Casing | plastic case |
| Type of readable cards | EM |
| Readable frequency | 125 kHz |
| Keyboard | Yes |
| PIN length | 4 - 6-digit |
| Installation | surface-mounted |
| Installation environment | indoor |
| Environmental protection rating | no rating |
| Vandalproof protection | sabotage protection |
| Capacity | 50,000 cards 100,000 events |
| Method of security backup | memory can be saved onto PC |
| Methods of adding users | from PC |
| Communication methods | can manage Wiegand reader, can work as Wiegand reader, USB, TCP/IP |
| Wiegand input bit rating | 26 ~ 37 bit |
| Wiegand output bit rating | 26 ~ 37 bit |
| Power supply | 12 V DC |
| Power consumption | 500 mA |
| Dimensions | 87 × 190.5 × 35 mm |
| Reading range | ~5 cm |
| Language of internal menu | English |
|---|---|
| LED | Yes |
| Buzzer | Yes |
| Keyboard lighting | yes (cannot be turned off) |
| Number of controllable doors | 1 |
| Lock output type | dry contact (relay, NO/NC/COM) |
| Lock output load capacity | 2 A (30 V DC) |
| Inputs | push button, Wiegand, door contact, RS-485 |
| Outputs | bell, alarm, Wiegand, AUX, ethernet |
| Tamper protection | yes (via microswitch) |
| Opening methods | only card, only PIN, card and PIN, card or PIN, biometric, biometric or card, biometric or card or PIN |
| Opening signal length (if used in timed mode) | 1 ~ 254 seconds |
| Bistable mode | No |
| Access control functions | normal, anti-passback, interlock system, multicard opening, passage mode |
| Events that cause alarm | door left open, door opened forcefully, tamper |
| Display | Yes |
| Working temperature | -10°C ~ +50°C |
| Humidity tolerance | 20% ~ 80% |
| Other properties | event logging; paid management software (ZKBio CVSecurity) |
| Warranty (for legal entities) | 12 months |
| Certificate | RoHS, FCC |
| Manufacturer | ZKTeco |
