0036 1 406 98 08
SKU
SK-8EM-W(V1)
Waterproof (IP68), standalone card reader & code lock - EM
€57.00
Description

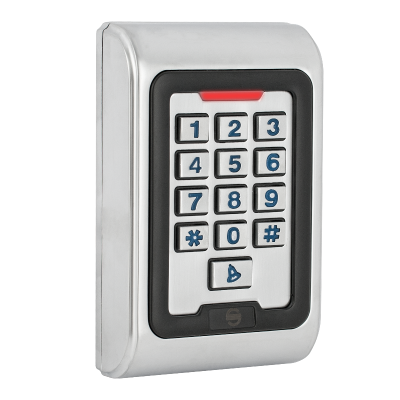

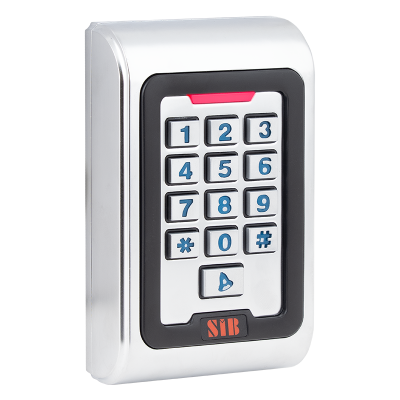

SK-8EM-W - Waterproof (IP68), standalone card reader & code lock - EM
Standalone card readers are high-security devices suitable for controlling almost any access point. Their major advantage is that, beyond card identification, they can independently control door locks, eliminating the need for a separate door control panel in the system. Their installation and use are extremely simple.
SK-8EM-W is a waterproof standalone card reader and code lock housed in an aesthetically pleasing, vandal-proof metal enclosure. Its IP68 rating makes it suitable for outdoor use. It can be used as a standalone controller or with an auxiliary reader, and the device itself can also function as an auxiliary reader. Programming is easily performed via the keypad.
IMPORTANT! The device is protected against accidental reverse polarity connections for only a few seconds. If reverse polarity persists beyond this time, the electronics will be damaged, and the warranty will be void.
Downloads
More Information
| Controller's type | stand-alone RFID keypad |
|---|---|
| RFID frequency | 125 kHz EM |
| Door relays | 1 door 1 way, 1 door 2 way (with RFID reader) |
| Lock output type | relay NO / NC |
| Programming method | with master cards, from keypad |
| Capacity | 2,000 users |
| Connectivity | Wiegand |
| Wiegand Interface | input, output |
| Wiegand bit length | 26 - 37-bit (adjustable) |
| RS-485 interface | None |
| Reading distance | <4 cm |
| Opening method(s) | PIN code, RFID card, RFID card & PIN toghether |
| Unlock time | 0 ~ 99 seconds |
| Inputs | Door Release button, Door sensor, RFID reader |
| Outputs | Lock output, Bell output, Alarm output, Wiegand output |
| Keypad? | Yes |
| Keypad backlight | Switchable (Number backlight) |
| PIN length | 4-6 digits |
| Vandalproof? | Metal Case |
| LED feedback | Yes |
| Buzzer feedback | Yes |
| User Interface | LED, Voice |
| Anti-passback | Yes (1 door) |
|---|---|
| Interlock | None |
| Passage mode | None |
| Multicard opening | Yes |
| Guestuser | None |
| Power supply | 12 - 24 V |
| Type of power | DC |
| Current draw | 25 mA (idle) |
| Electric rerformance | 0,3 W |
| Annual consumption (99,9% closed) | <3 kWh |
| Annual cost (Hungary) | ~210 Ft |
| Mounting | surface mounted |
| Installation environment | indoor, outdoor |
| Index of protection (water and dust) | IP68 |
| Dimension | 77 × 119 × 26 mm |
| Accessories in the package | screw set |
| Tamper protection | optical |
| Environment temperature ( °C ) | -45 °C ~ +55 °C |
| Humidity tolerance | up to 95% (non consistent) |
| Warranty | 12 month |
| Certificates | CE, DOC |
| Manufacturer | Silin |
| Product category | A |
