0036 1 406 98 08
SKU
SPEEDFACE-V5L-TD
Contactless AC terminal - face, palm, finger, temp.
€1,935.00
Description

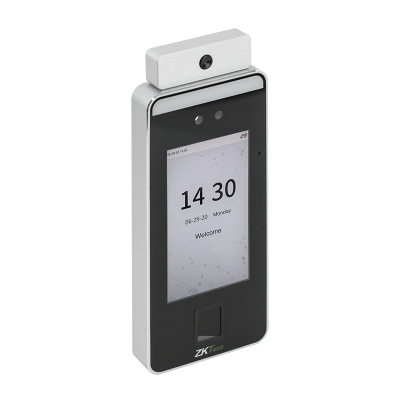

SPEEDFACE-V5L-TD - Contactless AC terminal - face, palm, finger, temperature
SPEEDFACE-V5L-TD is an advanced access control system with face, fingerprint, and palm recognition entry modes. The device's advanced facial recognition algorithm enables a mask detection function and can also detect body temperature with high speed (<0.3 seconds) and accuracy, meeting hygiene requirements.
The palm recognition feature has a False Acceptance Rate (FAR) of less than 0.01% and a False Rejection Rate (FRR) below 1%. The 5-inch color IPS LCD touchscreen, new firmware, and user-friendly menu allow for easy operation for tasks such as user management, access control parameter settings, report querying, etc. The device provides audio alerts and instructions, and stores temperature statistics, reports, and logs of abnormal temperatures measured.
Downloads
More Information
| Product category | B+ |
|---|---|
| Type of device | fingerprint reader, face recognition device, palm reader |
| Casing | metal case |
| Keyboard | No |
| PIN length | 4 - 6-digit |
| Installation | surface-mounted |
| Installation environment | indoor |
| Environmental protection rating | no rating |
| Vandalproof protection | metal case, sabotage protection |
| Capacity | 6,000 fingerprints 6,000 faces 3,000 palms 200,000 events |
| Method of security backup | memory can be saved onto PC |
| Methods of adding users | via touchscreen, from PC |
| Communication methods | can manage Wiegand reader, can work as Wiegand reader, TCP/IP |
| Wiegand input bit rating | 26 ~ 37 bit |
| Wiegand output bit rating | 26 ~ 37 bit |
| Power supply | 12 V DC |
| Power consumption | 3 A |
| Dimensions | 92 × 220 × 22.5 mm |
| Reading range | 3 ~ 5 cm |
| Language of internal menu | English |
| LED | No |
|---|---|
| Buzzer | Yes |
| Keyboard lighting | no |
| Number of controllable doors | 1 |
| Lock output type | dry contact (relay, NO/NC/COM) |
| Lock output load capacity | 2 A (30 V DC) |
| Inputs | push button, Wiegand, door contact, RS-485 |
| Outputs | alarm, Wiegand, AUX, RS-485, ethernet |
| Tamper protection | yes (via microswitch) |
| Opening methods | only card, only PIN, card and PIN, card or PIN, biometric, biometric or card, biometric or card or PIN |
| Opening signal length (if used in timed mode) | 1 ~ 254 seconds |
| Bistable mode | No |
| Access control functions | normal, anti-passback, interlock system, multicard opening, passage mode |
| Events that cause alarm | door left open, door opened forcefully, tamper |
| Display | Yes |
| Working temperature | -10°C ~ +45°C |
| Humidity tolerance | 10% ~ 90% |
| Other properties | body temperature measurement; mask detection; logging; time & attendance; management software |
| Warranty (for legal entities) | 12 months |
| Certificate | CE, RoHS, FCC |
| Manufacturer | ZKTeco |
