0036 1 406 98 08
SKU
IDT-1000EM(1M)-26
Thick antenna RFID card with 125 kHz EM4100 chip - 26 bit
€1.85
Description

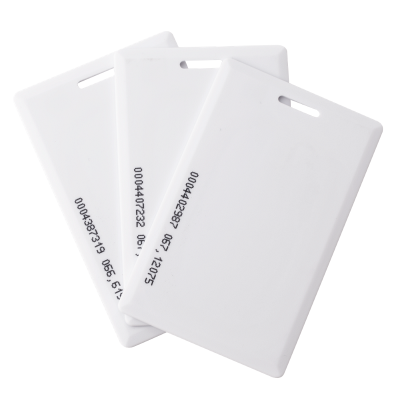

Thick antenna RFID card with 125 kHz EM4100 chip - 26 bit
RFID-based systems guarantee the highest level of security. The necessary accessories for these access control systems include proximity RFID cards, key fobs, and wristbands.
IDT-1000EM(1M) is a proximity RFID card designed for 125kHz EM-type readers. It is available in two standards: Wiegand 26-bit and 34-bit. Thanks to its compact size, it can be easily stored in a wallet or document holder. Its thicker coil provides approximately twice the reading range compared to the IDT-1000EM. Similar to other EM cards, the code is printed on the card. Usage is extremely simple: holding it a few centimeters away from the reader's antenna activates the reader's relay.
More Information
| Product category | A |
|---|---|
| Chip type | 125 kHz EM4100 |
| RFID code length | 26 bits |
| Memory type | only readable |
| Type | card |
| Design | thick (1.8 mm) |
| Code is printed onto the card | Yes |
| Dimensions | 85.6 × 53.98 mm (standard ISO/IEC 7810 ID-1 size), 1.8 mm thick (standard bank card size, thicker version) |
|---|---|
| Minimal orderable amount | 1 pc |
| Amount in factory packaging | 100 pcs / box |
| Compatible reader | any 125 kHz EM reader |
| Other properties | due to its thick coil, it can be read from up to 1 meter using a medium-range reader |
| Warranty (for legal entities) | 12 months |
| Certificate | CE |
