ER50EM|PCB
Built-in Wiegand auxiliary reader - EM
€16.25
Description
ER50EM|PCB - Built-in Wiegand auxiliary reader - EM
Wiegand proximity auxiliary readers are suitable devices for complementing high-security access control systems. The Wiegand standard is extremely simple, allows cabling up to 50 meters, and is one of the most widespread interfaces in access control systems.

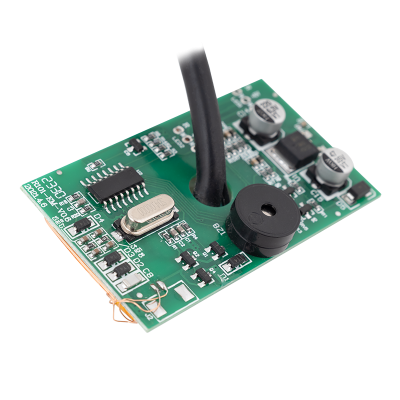

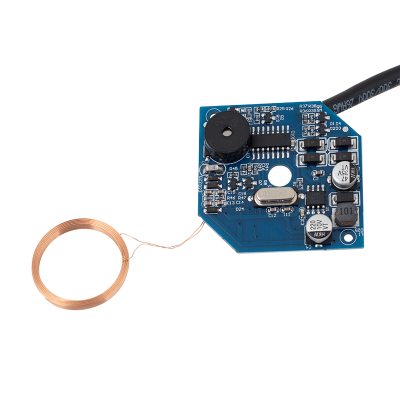

ER50EM|PCB is a built-in Wiegand auxiliary reader with 26/34-bit communication capable of reading 125 kHz EM cards. It features LED feedback and a buzzer. It is an ideal solution for enhancing turnstiles, intercoms, and other similar systems. The antenna should not be placed near metal, as it can significantly interfere with the signal.
Downloads
More Information
| Product category | A |
|---|---|
| Readable cards | 125 kHz EM |
| Communication | Wiegand |
| Casing | without casing |
| Wiegand output bit rating | 26/34 bits |
| Reading range | ~5 cm |
| Biometric identification | No |
| Has keyboard | No |
| Keyboard lighting | No |
| LED | No |
| Buzzer | Yes |
| Protection rating | no rating |
|---|---|
| Installation environment | indoor |
| Installation | can be built in |
| Power supply | 12 V DC |
| Power consumption | <30 mA |
| Dimensions | panel: 65 × 34 × 10 mm |
| Working temperature | -45°C ~ +60°C |
| Humidity tolerance | 0% ~ 90% |
| Other properties | can be built into turnstiles, door phones, or walls |
| Warranty (for legal entities) | 12 months |
| Certificate | CE |
