0036 1 406 98 08
SKU
KR-101E
Drip-proof (IP65) Wiegand auxiliary reader - EM
€23.30
Description

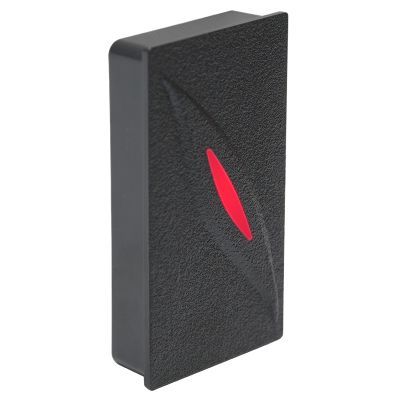

KR-101E - Drip-proof (IP65) Wiegand auxiliary reader - EM
Wiegand proximity auxiliary readers are suitable devices for complementing high-security access control systems. The Wiegand standard is extremely simple, allows cabling up to 50 meters, and is one of the most widespread interfaces in access control systems.
KR-101E is a drip-proof Wiegand auxiliary reader with aesthetic plastic housing and26- or 34-bit communication, capable of reading 125 kHz EM cards. It features LED feedback and a buzzer. Ideal solution for complementing almost any small or large access control or time & attendance system.
More Information
| Product category | A |
|---|---|
| Readable cards | 125 kHz EM |
| Communication | Wiegand |
| Casing | plastic |
| Wiegand output bit rating | 26/34 bits |
| Reading range | 3 ~ 10 cm |
| Biometric identification | No |
| Has keyboard | No |
| Keyboard lighting | No |
| LED | Yes |
| Buzzer | Yes |
| Protection rating | IP65 |
|---|---|
| Installation environment | outdoor (without protection) |
| Installation | surface-mounted |
| Power supply | 6-14 V DC |
| Power consumption | <70 mA |
| Dimensions | 77.5 × 42.8 × 16.5 mm |
| Working temperature | -20°C ~ +65°C |
| Humidity tolerance | 20% ~ 80% |
| Warranty (for legal entities) | 12 months |
| Certificate | CE, DOC, RoHS, FCC |
| Manufacturer | ZKTeco |
