WK1-EM
Wireless Wiegand auxiliary reader with keyboard - EM
€43.00
Description

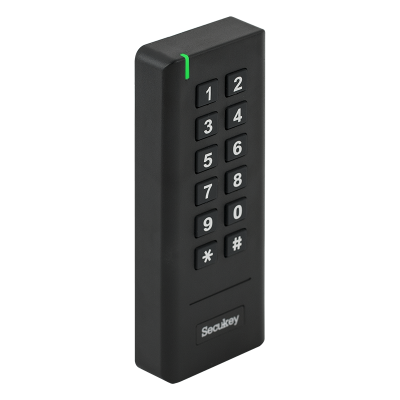

WK1-EM - Wireless Wiegand auxiliary reader with keyboard - EM
Wiegand proximity auxiliary readers are suitable devices for complementing high-security access control systems. The Wiegand standard is extremely simple, allows cabling up to 50 meters, and is one of the most widespread interfaces in access control systems.
WK1-EM supports both 26-bit and 34-bit Wiegand systems and is capable of reading 125 kHz EM cards. It features an aesthetic black plastic housing, a keypad, LED, and buzzer feedback. It is recommended for indoor installation or at least in a location protected from water.
Downloads
More Information
| Product category | A |
|---|---|
| Readable cards | 125 kHz EM |
| Communication | Wiegand |
| Casing | plastic |
| Wiegand output bit rating | 26/34 bits |
| Reading range | ~5 cm |
| Biometric identification | No |
| Has keyboard | Yes |
| Keyboard format | 8 bits |
| Keyboard lighting | No |
| LED | Yes |
| Buzzer | Yes |
| Protection rating | no rating |
|---|---|
| Installation environment | indoor |
| Installation | surface-mounted |
| Power supply | 12 V DC |
| Power consumption | 35 mA (reader) 15 mA (receiver) |
| Dimensions | 120 × 50 × 20 mm (reader) 25 × 50 mm (receiver) |
| Working temperature | -20°C ~ +60°C |
| Humidity tolerance | 0% ~ 86% |
| Other properties | the reader operates with 3 AAA batteries and connects wireless to the receiver unit. It handles opening codes as virtual card numbers and is compatible with ZKTeco door control panels |
| Warranty (for legal entities) | 12 months |
| Certificate | CE |
| Manufacturer | SECUKEY |
