U-P005MF-PRED
Waterproof (IP68) PREDOR auxiliary reader - MIFARE
€30.00
Description

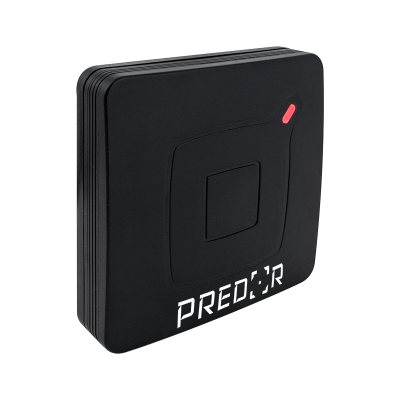

U-P005MF-PRED - Waterproof (IP68) PREDOR auxiliary reader - MIFARE
Wiegand proximity auxiliary readers are suitable for high-security access control systems. The Wiegand standard is extremely simple, can be wired up to 50 meters, and is one of the most widely used interfaces in access control systems.
The U-P005MF-PRED supports both 26-bit and 34-bit Wiegand systems and can read 13.56MHz MIFARE cards. It features an aesthetic plastic housing with the PREDOR logo, LED feedback, and a buzzer. With its IP68 rating, it is completely waterproof, making it suitable for outdoor installation without any additional protection.
More Information
| Product category | A |
|---|---|
| Readable cards | 13.56 MHz MIFARE |
| Communication | Wiegand |
| Casing | plastic |
| Wiegand output bit rating | 26/34 bits |
| Reading range | 2 ~ 5 cm |
| Biometric identification | No |
| Has keyboard | No |
| Keyboard lighting | No |
| LED | Yes |
| Buzzer | Yes |
|---|---|
| Protection rating | IP68 |
| Installation environment | outdoor (extreme) |
| Installation | surface-mounted |
| Power supply | 9-16 V DC |
| Power consumption | ≤30 mA (idle) |
| Dimensions | 86 × 86 × 20,5 mm |
| Working temperature | -45°C ~ +60°C |
| Humidity tolerance | 10% ~ 90% (non condesing) |
| Other properties | completely waterproof |
| Warranty (for legal entities) | 12 months |
