0036 1 406 98 08
SKU
DR24060-02B

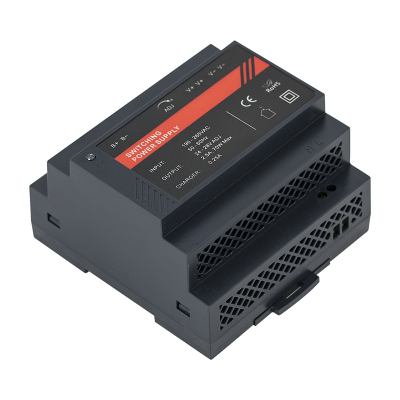

Uninterrupted power supply - 24 V DC 2.5 A
Ajánlott bruttó ár
Regular Price
€34.00
Special Price
€33.80
Description
The DR24060-02B is an uninterruptible power supply for powering access control systems, electric locks. It has an adjustable output voltage with a maximum load of 2.5 A. It has automatic short-circuit protection and deep discharge protection. WARNING! Use only in a covered, dry location! DIN rail mountable.
Downloads
More Information
| Voltage (V) | 190 - 265 V |
|---|---|
| Voltage type | AC |
| Output voltage | 24V - 28V DC |
| Power source capacity (A) | 2,5A @ 24V - 28V DC |
| Continuous power (W) | 70 W |
| Efficiency | ~90% |
| Type of connection | screw connection |
| Dimensions | 56 x 89 x 93 mm |
| Other functions | uninterruptable, LED indication, protected in- and output, filtered output, short-circuit protection, adjustable output voltage, deep discharge protection |
| Recommended use | for powering security and access control systems |
| Mounting | DIN rail |
| Installation area | indoor, covered, dry areas |
|---|---|
| Compatible products | batteries |
| Battery charging current | 0.25 A (decreases as the battery voltage increases) |
| Recommended battery replacement cycle | 1 year in security technology applications |
| Storage conditions | -30°C ~ +80°C |
| Environmental temperature | -20°C ~ +50°C |
| Humidity tolerance (non-condensing) | 20% ~ 80% |
| Gross weight | 0,3 kg |
| Warranty | 12 months |
| Certificates | CE |
| Product category | A |
