0036 1 406 98 08
SKU
5C-56

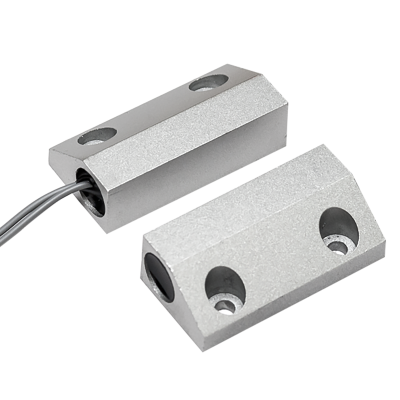

Door contact - metal - sufrace mount
€7.75
Description
The 5C-56 is a surface-mountable, medium-sized metal door contact. It has a reed relay NC contact (2 wires), which means it closes the circuit when the door is closed. It is ideal for access control systems to provide feedback on door status.
Downloads
More Information
| Type of door contact | NC (short circuit when door is closed), Reed-relay |
|---|---|
| Maximum sensing distance | 55 mm |
| Type of connection | wired |
| Dimension of door contact | 48 x 24,2 x 15 mm |
| Current rating | 0,1 A @ 12 V DC (0,12 W) |
| Mounting | surface mounted |
| Recommended use | for plastic doors, for metal doors, for wooden doors |
|---|---|
| Installation area | indoor, outdoor |
| Gross weight | 0,15 kg |
| Warranty | 12 months |
| Certificates | CE |
| Product category | A |
