0036 1 406 98 08
SKU
EB-135L

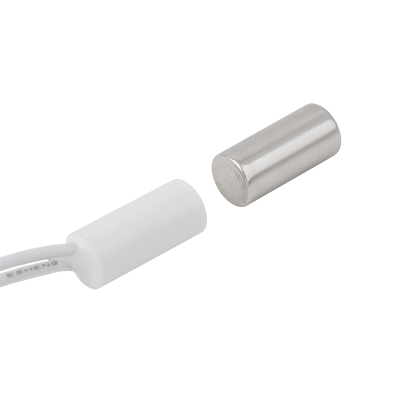

Door contact - plastic - flush mount - 15 mm sensing distance - NC (short circuit when door is closed) - mini
€2.50
Description
The EB-135L is a flush-mount, mini-sized plastic, door contact. It features a reed relay NC contact (2 wires), meaning it provides a short circuit signal when the door is open. It is ideal for access control systems to indicate the status of the door.
More Information
| Type of door contact | NC (short circuit when door is closed), Reed-relay |
|---|---|
| Maximum sensing distance | 15 mm |
| Type of connection | wired |
| Dimension of door contact | Ø6,3 x 14,3 mm |
| Current rating | 0,1 A @ 12 V DC (0,12 W) |
| Dimension of drilled hole | Ø6,3 x 16 mm |
| Mounting | flush mounted |
|---|---|
| Recommended use | for plastic doors, for wooden doors |
| Installation area | indoor, outdoor |
| Gross weight | 0,02 kg |
| Warranty | 12 months |
| Certificates | CE |
| Product category | A |
