0036 1 406 98 08
SKU
EB-143
Door contact - metal - flush mount - 15 mm sensing distance - NC (short circuit when door is closed) - mini
€5.80
Description

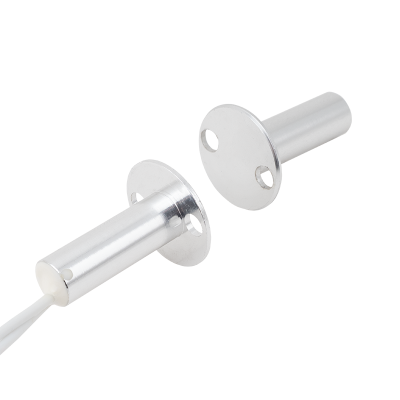

The EB-143 is a flush-mount, mini-sized metal, door contact. It features a reed relay NC contact (2 wires), meaning it provides a short circuit signal when the door is open. It is ideal for access control systems to indicate the status of the door.
More Information
| Type of door contact | NC (short circuit when door is closed), Reed-relay |
|---|---|
| Maximum sensing distance | 15 mm |
| Type of connection | wired |
| Dimension of door contact | Ø19 x 26 mm |
| Current rating | 0,1 A @ 12 V DC (0,12 W) |
| Dimension of drilled hole | Ø8,1 x 28 mm |
| Mounting | flush mounted |
|---|---|
| Recommended use | for plastic doors, for wooden doors |
| Installation area | indoor, outdoor |
| Gross weight | 0,02 kg |
| Warranty | 12 months |
| Certificates | CE |
| Product category | A |
