0036 1 406 98 08
SKU
ET-BY7-2P-20KA

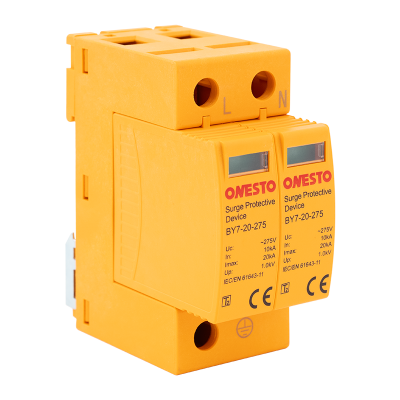

ET-BY7-2P-20KA - Surge protection device, 1-pólus+NPE, 20 kA, with changeable insert
€24.50
Description
ET-BY7-2P-20KA - Surge protection device, 1-pólus+NPE, 20 kA, with changeable insert
The ET-BY7-2P-20KA a two-module surge protection device. For mounting on standard 35 mm symmetrical DIN rail for indoor applications up to IP20.
Its application is recommended for all installation sites where the electrical protection of high-value access devices is not or only partially solved.
More Information
| Network standards | TN-S, TN-C-S, IT |
|---|---|
| Nominal voltage (V) | 275 V |
| Voltage type | AC |
| Nominal current (A) | 10 kA |
| Maximum discharge current | 20 kA |
| Module size | 2 modules (36 mm) |
| Installation area | indoor |
| Environmental temperature | -40°C - +80°C |
| Humidity tolerance (non-condensing) | max. 95% |
| IP rating | IP20 |
|---|---|
| Dimensions | 36 x 80 x 68 mm |
| Gross weight | 180 gr |
| Type of connection | screw connection |
| Connectable wire size (mm2) | 4 - 25 mm2 |
| Number of contacts | 3 |
| Other features | SPD dynamic isolator with optical status indicator, 35 mm DIN rail |
| Product category | G |
| Warranty | 12 months |
| Certificates | CE |
