0036 1 406 98 08
SKU
5C-36NO-wh

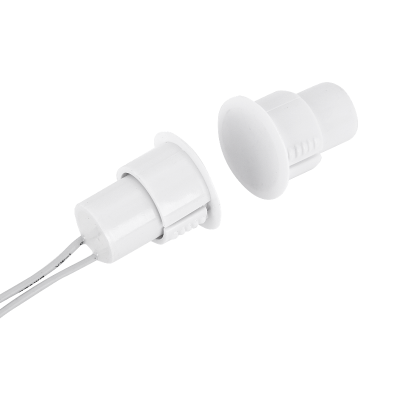

Door contact - plastic - flush mount
€8.25
Description
The 5C-36NO is a flush-mountable, medium-sized plastic door contact. It has a reed relay NO contact (2 wires), which means it closes the circuit when the door is open. It is ideal for access control systems to provide feedback on door status. Available in brown and white colors.
A similar door contact in NC configuration, available in white and brown colors: YB-36
More Information
| Type of door contact | NO (short circuit when door is open) |
|---|---|
| Maximum sensing distance | 22 mm |
| Type of connection | wired |
| Dimension of door contact | Ø24 × 25 mm |
| Current rating | 0,5 A @ 30 V DC |
| Dimension of drilled hole | ø19 x 27 mm |
| Mounting | flush mounted |
|---|---|
| Recommended use | for metal doors |
| Installation area | indoor, outdoor |
| Gross weight | 0,03 kg |
| Warranty | 12 months |
| Certificates | CE |
| Product category | A |
