0036 1 406 98 08
SKU
YB-35A-NO-bn

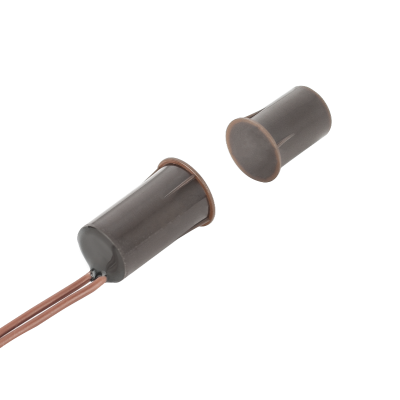

Door contact - plastic - flush mount
€4.50
Description
The YB-35A-NO is a small-sized plastic recessed-mount door contact. It features a reed relay NO contact (2 wires), which means it provides a short circuit signal when the door is open. It is ideal for access control systems to indicate the status of the door. Available colors include white, brown and black.
Also available in an NC contact version in white, black, and brown: YB-35A
More Information
| Type of door contact | NO (short circuit when door is open), Reed-relay |
|---|---|
| Maximum sensing distance | 15 mm |
| Type of connection | wired |
| Dimension of door contact | Ø12 x 20 mm |
| Current rating | 0,5 A @ 30 V DC |
| Dimension of drilled hole | ø10 x 21 mm |
| Mounting | flush mounted |
|---|---|
| Recommended use | for plastic doors, for wooden doors |
| Installation area | indoor, outdoor |
| Gross weight | 0,01 kg |
| Warranty | 12 months |
| Certificates | CE |
| Product category | A |
