0036 1 406 98 08
SKU
YB-35A-bn

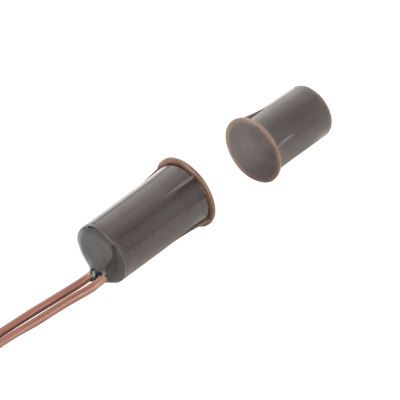

Door contact - plastic - flush mount
€1.50
Description
The YB-35A is a small-sized plastic recessed-mount door contact. It features a reed relay NC contact (2 wires), which means it provides a short circuit signal when the door is closed. It is ideal for access control systems to indicate the status of the door. Available colors include brown, white, and black.
Also available in an NO contact version in white and black: YB-35A-NO
More Information
| Type of door contact | NC (short circuit when door is closed), Reed-relay |
|---|---|
| Maximum sensing distance | 18 mm |
| Type of connection | wired |
| Dimension of door contact | Ø12 x 20 mm |
| Current rating | 0,5 A @ 30 V DC |
| Dimension of drilled hole | ø10 x 21 mm |
| Mounting | flush mounted |
|---|---|
| Recommended use | for plastic doors, for wooden doors |
| Installation area | indoor, outdoor |
| Gross weight | 0,01 kg |
| Warranty | 12 months |
| Certificates | CE |
| Product category | A |
