0036 1 406 98 08
SKU
YB-32NC-wh
Door contact - plastic - sufrace mount
€1.75
Description

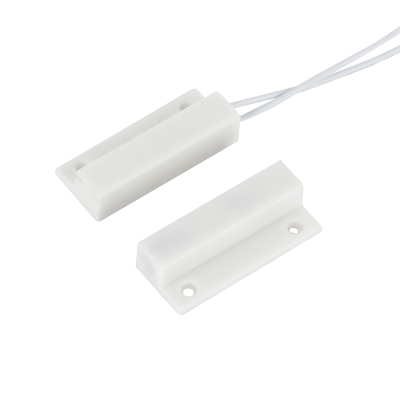

The YB-32NC is a surface-mountable, small-sized plastic door contact. It utilizes a reed relay NC contact (2 wires), which means it provides a short circuit signal when the door is closed. It is ideal for access control systems to indicate the status of the door.
Downloads
More Information
| Type of door contact | NC (short circuit when door is closed), Reed-relay |
|---|---|
| Maximum sensing distance | 14 mm |
| Type of connection | screw connection |
| Dimension of door contact | 34 x 14 x 9 mm |
| Current rating | 0,1 A @ 12 V DC (0,12 W) |
| Mounting | surface mounted |
| Recommended use | for plastic doors, for wooden doors |
|---|---|
| Installation area | indoor |
| Gross weight | 0,01 kg |
| Warranty | 12 months |
| Certificates | CE |
| Product category | A |
