0036 1 406 98 08
SKU
SA-601-6BW-sv

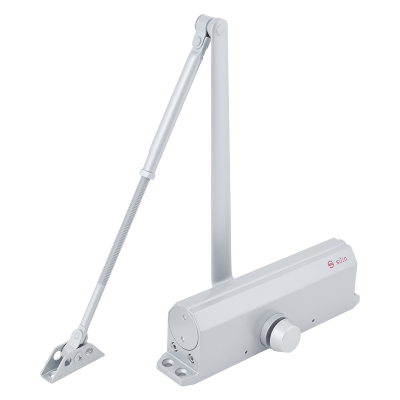

Door closer - scissor arm - EN2-6 - silver
€68.00
Description
|
The SA-601-6BW is a lever arm door closer with thermostable hydraulic oil, suitable for doors weighing 25-150 kg. The door can be opened up to 180°, and the closing and latching speeds can be adjusted separately. The EN 6 closing force is suitable for doors with a maximum width of 1500 mm, making it ideal for larger doors. It can be installed on both right-handed and left-handed doors. WARNING: Do not fully tighten or loosen the adjustment screws, as this may result in hydraulic oil leakage and void the warranty. |
 |
More Information
| Type of door closer | scissor arm |
|---|---|
| Body design | powder coated metal |
| Door leaf weight | 25 kg - 150 kg |
| Maximum door width | ≤ 1500 mm |
| Maximal opening angle | 180° |
| Dimensions | 247 x 47 x 70 mm |
| Adjustale arm length | 550 - 655 mm |
| Adjustment options | latch speed (15°-0°), closing speed (65°-15°), anti-collision force (70°-180°) |
| Mounting | surface mounted, above the door, on the opening side, on the side opposite to the opening, door closer on the opening wing, door closer on the casing |
|---|---|
| Recommended use | for large-sized, heavy-weight doors, in case of high wind load |
| Installation area | indoor, outdoor |
| Package contents | door closer, scissor arm, screw kit |
| Gross weight | 2,5 kg |
| Warranty | 12 months |
| Certificates | CE |
| Manufacturer | SILIN |
| Product category | A |
