0036 1 406 98 08
SKU
SA-6033AD-sv

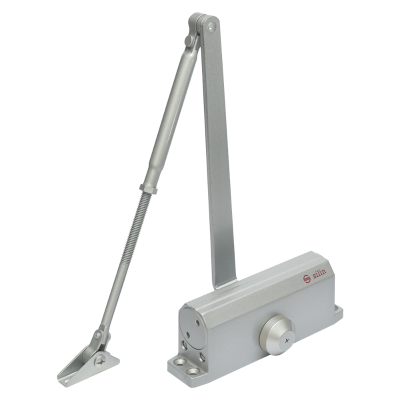

Door closer - scissor arm - EN3 - fixable - silver
€29.00
Description
|
The SA-6033AD is a 90° fixable arm door closer with thermally stable hydraulic oil, designed for doors weighing 40-65 kg. It can open the door up to 180° and features separately adjustable closing and latching speeds. The EN 3 closing force is suitable for moving doors up to 1050 mm in width. It is suitable for installation on both right-hand and left-hand doors. WARNING: Door closers should always be installed by a professional who is familiar with the proper installation procedures for this device. The arms must be slightly pre-tensioned even when the door is in the closed position. The adjustment screws must not be fully tightened or loosened, as this could result in hydraulic oil leakage and void the warranty.
|
 |
More Information
| Type of door closer | scissor arm |
|---|---|
| Body design | powder coated metal |
| Door leaf weight | 40 - 65 kg |
| Maximum door width | ≤ 1050 mm |
| Maximal opening angle | 180° |
| Dimensions | 185 x 44,5 x 68 mm |
| Adjustale arm length | 540 - 650 mm |
| Adjustment options | latch speed (15°-0°), closing speed (65°-15°), anti-collision force (70°-180°) |
| Other functions | fixable at 90° |
| Mounting | surface mounted, above the door, on the opening side, on the side opposite to the opening, door closer on the opening wing, door closer on the casing |
|---|---|
| Recommended use | or medium-sized, normal-weight doors, in case of medium wind load |
| Installation area | indoor, outdoor |
| Package contents | door closer, scissor arm, screw kit |
| Related brackets | PB-02, PB-03 |
| Gross weight | 1,85 kg |
| Warranty | 12 months |
| Certificates | CE |
| Manufacturer | SILIN |
| Product category | A |
