SA-6033AW-wh

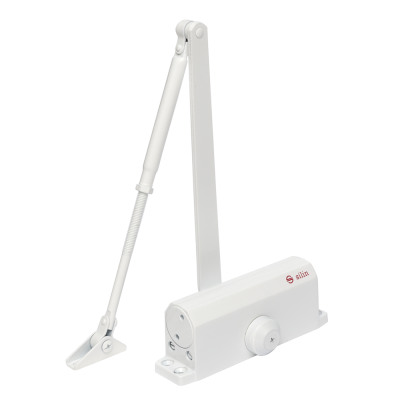

Door closer - scissor arm - EN3 - white
€29.00
Description
|
The SA-6033AW is a scissor arm door closer with thermostable hydraulic oil, suitable for doors weighing 40-65 kg. The door can be opened up to 180°, and the closing and latching speeds can be adjusted separately. The EN 3 closing force is suitable for doors with a maximum width of 1050 mm. It can be installed on both right-handed and left-handed doors. WARNING: Do not fully tighten or loosen the adjustment screws, as this may result in hydraulic oil leakage and void the warranty. |
 |
More Information
| Type of door closer | scissor arm |
|---|---|
| Body design | powder coated metal |
| Door leaf weight | 40 - 65 kg |
| Maximum door width | ≤ 1050 mm |
| Maximal opening angle | 180° |
| Dimensions | 185 x 44,5 x 68 mm |
| Arm/rail length | 540 - 650 mm (adjustable) |
| Adjustment options | latch speed (15°-0°), closing speed (65°-15°), anti-collision force (70°-180°) |
| Mounting | surface mounted, above the door, on the opening side, on the side opposite to the opening, door closer on the opening wing, door closer on the casing |
| Recommended use | or medium-sized, normal-weight doors, in case of medium wind load |
|---|---|
| Installation area | indoor, outdoor |
| Package contents | door closer, scissor arm, screw kit |
| Related brackets | PB-02, PB-03 |
| Gross weight | 1,85 kg |
| Warranty | 12 months |
| Certificates | CE |
| Manufacturer | SILIN |
| Product category | A |
