0036 1 406 98 08
SKU
SA-5012AD-sv

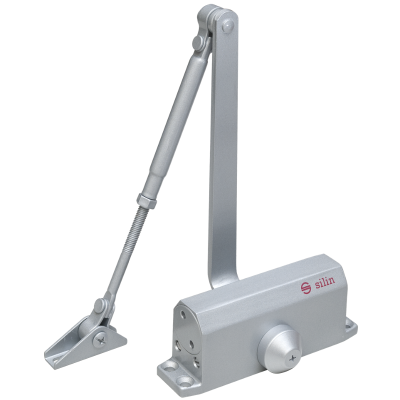

Door closer - scissor arm - EN2 - fixable - silver
€19.50
Description
|
The SA-5012AD-sv is a 90° hold-open scissor arm door closer with thermostable hydraulic oil, suitable for doors weighing 20-45 kg. The door can be opened up to 135°, but with the PB-03, an opening of up to 180° can be achieved. The closing and latching speeds can be adjusted separately. The EN 2 closing force is suitable for doors with a maximum width of 900 mm. It can be installed on both right-handed and left-handed doors. WARNING: Do not fully tighten or loosen the adjustment screws, as this may result in hydraulic oil leakage and void the warranty. |
 |
More Information
| Type of door closer | scissor arm |
|---|---|
| Body design | powder coated metal |
| Door leaf weight | 25 - 45 kg |
| Maximum door width | ≤ 900 mm |
| Maximal opening angle | 135°, 180° with PB-03 |
| Dimensions | 148 x 36,5 x 56 mm |
| Adjustale arm length | 420 - 500 mm |
| Adjustment options | latch speed (15°-0°), closing speed (65°-15°) |
| Other functions | fixable at 90° |
| Mounting | surface mounted, above the door, on the opening side, on the side opposite to the opening, door closer on the opening wing, door closer on the casing |
|---|---|
| Recommended use | for small, lightweight doors, in case of low wind load |
| Installation area | indoor, outdoor |
| Package contents | door closer, scissor arm, screw kit |
| Related brackets | PB-02, PB-03 |
| Gross weight | 1,2 kg |
| Warranty | 12 months |
| Certificates | CE |
| Manufacturer | SILIN |
| Product category | A |
