0036 1 406 98 08
SKU
SA-8033-sv

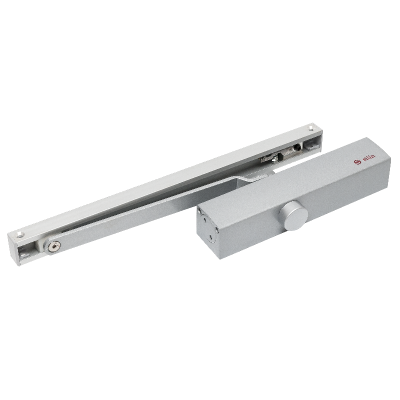

Door closer - sliding arm - EN4 - silver
€63.00
Description
|
The SA-8033 is a sliding arm door closer with thermostable hydraulic oil, suitable for doors weighing 60-85 kg. The door can be opened up to 180°, and the closing and latching speeds can be adjusted separately. The EN 4 closing force is suitable for doors with a maximum width of 1050 mm. It can be installed on both right-handed and left-handed doors. WARNING: Do not fully tighten or loosen the adjustment screws, as this may result in hydraulic oil leakage and void the warranty. |
 |
More Information
| Type of door closer | sliding arm |
|---|---|
| Body design | powder coated metal |
| Door leaf weight | 60 - 85 kg |
| Maximum door width | ≤ 1050 mm |
| Maximal opening angle | 180° |
| Dimensions | 230 × 50 × 38 mm |
| Adjustale arm length | 540 - 650 mm |
| Adjustment options | latch speed (15°-0°), closing speed (65°-15°) |
| Other functions | fixable at 90° |
| Mounting | surface mounted, above the door, on the opening side, on the side opposite to the opening, door closer on the opening wing, door closer on the casing |
|---|---|
| Recommended use | for medium/large-sized, normal/heavy-weight doors, in case of medium/high wind load |
| Installation area | indoor, outdoor |
| Package contents | door closer, sliding arm, screw kit |
| Gross weight | 2,05 kg |
| Warranty | 12 months |
| Certificates | CE |
| Manufacturer | SILIN |
| Product category | A |
