ABK-902-12-3

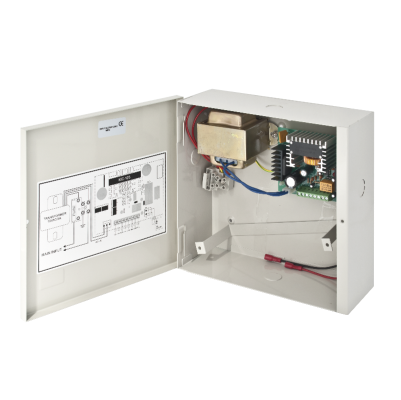

Uninterruptible Power Supply - 12 V DC 3 A
€53.00
Description
Uninterruptible Power Supply
The ABK-902-12-3 is an uninterruptible power supply unit for powering access control systems and electric locks. It has an adjustable output voltage and can be loaded up to a maximum of 3 A. It has automatic short-circuit protection, a timer, a lock control output and a pushbutton input.
WARNING! Use only in a covered, dry location!
Downloads
More Information
| Voltage (V) | 200 - 240 V |
|---|---|
| Voltage type | AC |
| Output voltage | 12V - 15V DC |
| Controlled output type | switched voltage |
| Controlled output timing | adjustable (0-30 s) |
| Power source capacity (A) | 3A @ 12V - 15V DC |
| Rated power (W) | 36 W |
| Continuous power (W) | 18 W |
| Type of connection | screw connection |
| Product family | transformer power supply, controlled power supply, boxed power supply |
| Dimensions | 223 x 212 x 80 mm |
| Type of control | push button (dry contact), voltage (rising edge) |
| Other functions | uninterruptable, LED indication, protected in- and output, filtered output, short-circuit protection, adjustable output voltage |
|---|---|
| Recommended use | for powering security and access control systems, for controlling electric locks |
| Mounting | surface mounted |
| Installation area | indoor, covered, dry areas |
| Compatible products | AKKU-12-7-RITAR |
| Recommended battery replacement cycle | 1 year in security technology applications |
| Environmental temperature | -10°C ~ +55°C |
| Humidity tolerance (non-condensing) | max. 95% |
| Gross weight | 2,72 kg |
| Warranty | 12 months |
| Certificates | CE |
| Manufacturer | YLI |
| Product category | A |
