SKU
ABK-906-12-3

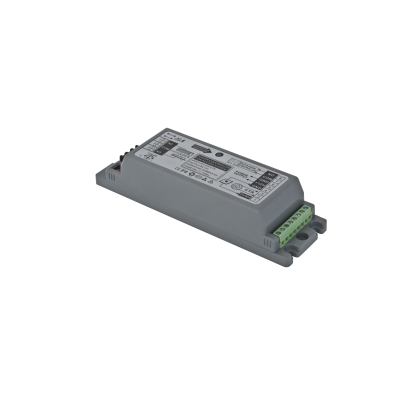

Switching power supply - 12 V DC 3 A
€31.50
Description
Switching power supply 12V DC 3A, with timer
The ABK-906-12-3 is a 12V DC timer controlled power supply, ideal for access control systems. The unit is capable of controlling both normal and reverse operation locks, with timing adjustable from 1~13 seconds using a potentiometer.
Downloads
More Information
| Voltage (V) | 200 - 240 V |
|---|---|
| Voltage type | AC |
| Output voltage | 12V DC |
| Controlled output type | switched voltage |
| Controlled output timing | adjustable (1-13 s) |
| Power source capacity (A) | 3A @ 12V DC |
| Continuous power (W) | 36 W |
| Type of connection | screw connection |
| Product family | switching power supply, controlled power supply |
| Dimensions | 176 x 53 x 37 mm |
| Type of control | push button (dry contact), voltage (rising edge) |
| Other functions | LED indication, protected in- and output, filtered output, short-circuit protection |
|---|---|
| Recommended use | for powering security and access control systems, for controlling electric locks |
| Mounting | surface mounted |
| Installation area | indoor, covered, dry areas |
| Environmental temperature | -10°C ~ +55°C |
| Humidity tolerance (non-condensing) | max. 95% |
| Gross weight | 0,23 kg |
| Warranty | 12 months |
| Certificates | CE |
| Manufacturer | YLI |
| Product category | A |
