0036 1 406 98 08
SKU
DR24240-02B

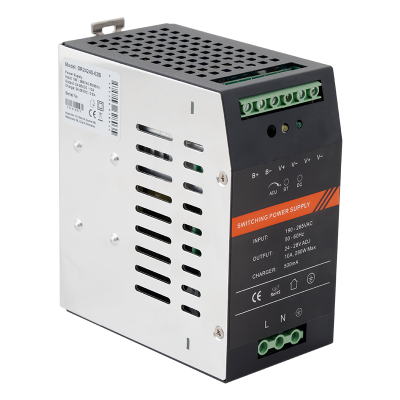

24V 10A switch-mode power supply with DIN rail mountable battery protection
€84.00
Description
The DR24240-02B is a DIN rail uninterruptible power supply designed to provide power for intercom systems and personnel access control systems. It features adjustable output voltage and can handle loads up to 10A. It includes automatic short-circuit protection and deep discharge protection.
WARNING! For use only in covered, dry locations!
Downloads
More Information
| Voltage (V) | 190 - 265 V |
|---|---|
| Voltage type | AC |
| Output voltage | 24V - 28V DC |
| Power source capacity (A) | 10A @ 24V - 28V DC |
| Continuous power (W) | 280 W |
| Efficiency | ~88% |
| Type of connection | screw connection |
| Product family | switching power supply |
| Dimensions | 63 x 124 x 113 mm |
| Other functions | uninterruptable, LED indication, protected in- and output, filtered output, short-circuit protection, adjustable output voltage, deep discharge protection |
| Recommended use | for powering security and access control systems |
| Mounting | DIN rail |
|---|---|
| Installation area | indoor, covered, dry areas |
| Compatible products | batteries |
| Battery charging current | 0.5 A (decreases as the battery voltage increases) |
| Recommended battery replacement cycle | 1 year in security technology applications |
| Storage conditions | -30°C ~ +80°C |
| Environmental temperature | -20°C ~ +50°C |
| Humidity tolerance (non-condensing) | 20% ~ 80% |
| Gross weight | 0,9 kg |
| Warranty | 12 months |
| Certificates | CE |
| Product category | A |
