SKU
SPHD1203-01B-MOD.AC

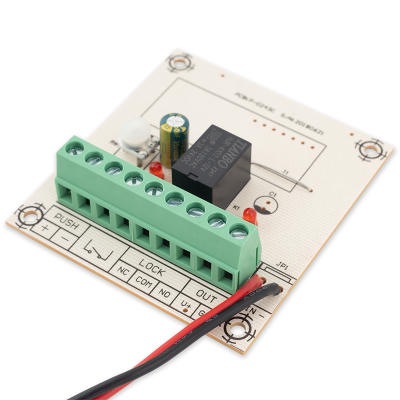

Access Control Panel for SPHD1203-01B Power Supply
€6.25
Description
The SPHD1203-01B-MOD.AC is an access control panel designed for power supplies.
More Information
| Voltage type | DC |
|---|---|
| Controlled output type | 1 relay (NO-NC-COM) |
| Controlled output current rating | 3A @ 24V DC |
| Controlled output timing | adjustable (0-10 s) |
| Product family | electric lock control module |
| Dimensions | 60 x 65 mm |
| Type of control | push button (dry contact), voltage (rising edge) |
| Other functions | LED indication |
| Recommended use | for controlling electric locks |
| Mounting | inside power supply box |
|---|---|
| Installation area | indoor, covered, dry areas |
| Storage conditions | -30°C ~ +80°C |
| Environmental temperature | -20°C ~ +50°C |
| Humidity tolerance (non-condensing) | 20% ~ 80% |
| Gross weight | 0,04 kg |
| Warranty | 12 months |
| Certificates | CE |
| Product category | A |
