DR12024-01C

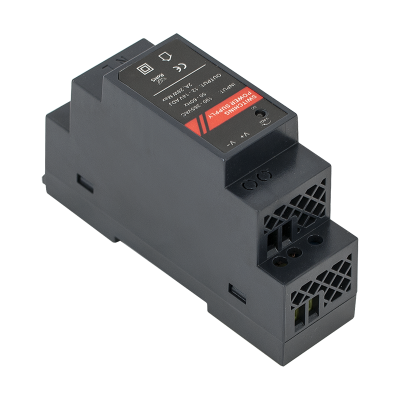

Switching power supply - 12 V DC 2 A - DIN rail
€14.50
Description
The DR12024-01C is a switching power supply for powering access control systems, electric locks. It has an adjustable output voltage with a maximum load of 2 A. It has automatic short circuit protection and deep discharge protection.
WARNING! Use only in a covered, dry location! DIN rail mountable.
Downloads
More Information
| Voltage (V) | 190 - 265 V |
|---|---|
| Voltage type | AC |
| Output voltage | 12V - 14V DC |
| Power source capacity (A) | 2A @ 12V - 14V DC |
| Continuous power (W) | 28 W |
| Efficiency | ~88% |
| Type of connection | screw connection |
| Product family | switching power supply |
| Dimensions | 27 x 93 x 56 mm |
| Other functions | LED indication, protected in- and output, filtered output, short-circuit protection, adjustable output voltage, deep discharge protection |
| Recommended use | for powering security and access control systems |
|---|---|
| Mounting | DIN rail |
| Installation area | indoor, covered, dry areas |
| Storage conditions | -30°C ~ +80°C |
| Environmental temperature | -20°C ~ +50°C |
| Humidity tolerance (non-condensing) | max. 80% |
| Gross weight | 0,125 kg |
| Warranty | 12 months |
| Certificates | CE |
| Product category | A |
