0036 1 406 98 08
SKU
YLI-12-5
Switching power supply 12V DC 5A
€19.10
Description
Switching power supply 12V 5A

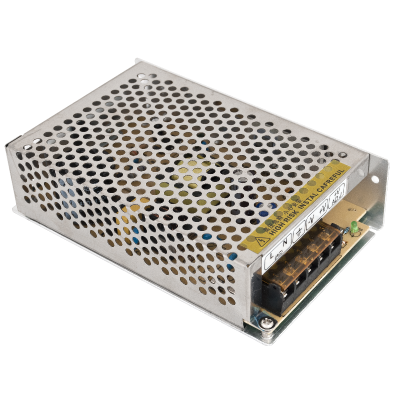

The YLI-12-5 is a large switching power supply. It is delivered in a light, mountable metal case. The output voltage is adjustable with a potentiometer and has 2 outputs. The power supply is equipped with short circuit protection. The output voltage of the power supply is always stable, making it suitable for applications where a constant voltage is required even under varying loads. CAUTION! The unit must be connected to mains voltage and requires professional installation.
Downloads
More Information
| Voltage (V) | 200 - 240 V |
|---|---|
| Voltage type | AC |
| Output voltage | 10,2V - 13,8V DC |
| Power source capacity (A) | 5A @ 10,2V - 13,8V DC |
| Continuous power (W) | 60 W |
| Type of connection | screw connection |
| Product family | switching power supply |
| Dimensions | 161,5 x 98,6 x 42,5 mm |
| Other functions | LED indication, protected in- and output, filtered output, short-circuit protection, adjustable output voltage |
| Recommended use | for powering security and access control systems |
|---|---|
| Mounting | surface mounted |
| Installation area | indoor, covered, dry areas |
| Environmental temperature | 0°C ~ +40°C |
| Humidity tolerance (non-condensing) | 10% ~ 90% |
| Gross weight | 0,32 kg |
| Warranty | 12 months |
| Certificates | CE |
| Product category | A |
