SKU
ASC-MULTIONE-GSM
GSM module 1 input 1 output with 2G Cloud platform
€76.00
Description

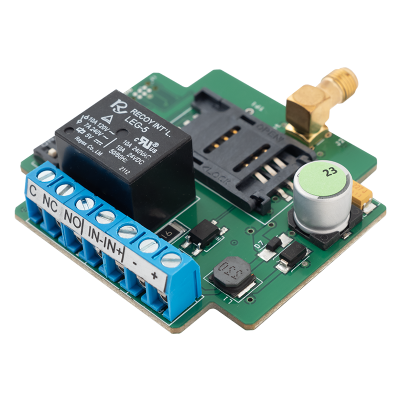

ASC-MULTIONE-GSM - GSM module with 1 input, 1 output, 2G and Cloud interface
The MultiOne GSM Cloud is one of the most popular ASC modules, which can be used for remote control and notification.
The device has an opto-isolator input and a potential independent relay output, which can be set to both normally closed (NC) and normally open (NO).
In response to an input change, it sends an SMS to a specific telephone number or, together with sending an SMS, it makes a telephone call to the same telephone number.
Output is controlled by calling the call number of the SIM card inserted in the module. Depending on the setting, you can control without caller ID or with caller ID. The output can be set as bistable or monostable. The module can be set via DIP switches and SMS message.
The MultiOne GSM Cloud module is also available in the cloud. The output control of the device can be controlled via a control button created in the Cloud Manager application after registration, as well as via the program's PC website.
Downloads
More Information
| Voltage (V) | 12-24 V AC / 10-30 V DC |
|---|---|
| Power supply requirement | permanent |
| Stand-by current consumption (A) | 25 mA @ 12V DC vagy 15 mA @ 24V DC |
| Maximum current consumtion (A) | 700 mA @ 12V DC or 350 mA @ 24V DC |
| SIM type | Standard (2FF) |
| Communication | GSM 850, EGSM 900, DCS 1800 , PCS 1900 (Multi- Band) |
| Number of controlled outputs | 1 |
| Controlled output type | relay (NO/NC) |
| Controlled output current rating | 5A @ 230V AC |
| Controlled output timing type | monostable, bistable |
| Controlled output timing | 65535 sec |
| Number of controller inputs | 1 |
| Types of control inputs | Opto-coupled voltage input - / + |
| Operating modes | bistable, impulse timed |
| Antenna type | GSM - with SMA connector |
|---|---|
| Tamper protection | none |
| Dimensions | 59 x 53 x 21 mm |
| Installation area | indoor |
| Environmental temperature | -20°C – +50°C |
| Humidity tolerance (non-condensing) | max. 85% |
| IP rating | unclassified |
| User phone numbers for control | 250/500 |
| Gross weight | 78 gr |
| Package contents | GSM module, GSM antenna |
| Programming | digitally from controller, with software, SMS |
| Warranty | 12 months |
| Certificates | CE |
| Manufacturer | ASC Global |
| Product category | F |
