ACS-1000R
Dual-channel, long-range remote control transceiver set
€110.00
Description

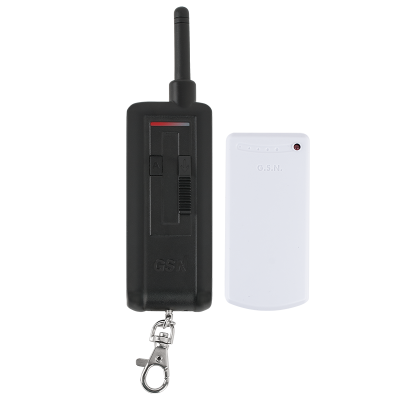

The ACS-1000R is a dual-channel, multi-function, long-range, rolling-code remote control transceiver set. The set includes a receiver with a wireless antenna and 1 remote control ACS-RC12 with key fob. The transmitter design is optimized for extra long range.
The ACS-1000R uses KEELOQ, a highly secure algorithm that prevents radio interception, unauthorized access and sabotage. In addition, the set can operate up to 1000 meters range in open space under optimal conditions. The set is capable of 2 modes of operation, making it ideal for security services in large areas, industrial or residential complexes, as a gate opener and/or panic transmitter.
More Information
| Voltage (V) | 12 - 16 V |
|---|---|
| Voltage type | DC |
| Power supply requirement | permanent |
| Stand-by current consumption (A) | 15 mA |
| Maximum current consumtion (A) | 40 mA |
| Max. operating distance | 1000 m (in open space) |
| Power consumption (W) | 0,18 W |
| Expected per year consumption (kWh) | 1,5 kWh |
| Receiver antenna sensitivity (dBm) | -115 dBm |
| Operation frequency | 433.92 MHz |
| RF code type | Hopping code |
| RF encoding | KEELOQ |
| Number of channels | 2 |
| Memory capacity | 330 remote control |
| Controlled output type | relay (NO/NC) |
| Controlled output current rating | 1A @ 30V DC / 0,5A @ 125V AC |
| Controlled output timing type | monostable |
| Controlled output timing | 1-3 sec |
| Operating modes | impulse (1sec), panic |
| Compatible transmitters | ACS-RC09, ACS-RC10, ACS-RC12 |
| Power failure feedback | None |
| Antenna type | Wire antenna |
| Tamper protection | yes (tamper switch) |
|---|---|
| Dimensions | 85 x 40 x 20 mm |
| Installation area | indoor |
| Housing material | plastic ABS |
| Environmental temperature | -20°C - +50 °C |
| Humidity tolerance (non-condensing) | max. 95% |
| IP rating | unclassified |
| IK rating | None |
| Gross weight | 150 g |
| Package contents | 1 pc RF receiver, 1 pc remote control with battery |
| Warranty | 12 months |
| Certificates | CE, EMC (EN 50130), SECURITY (EN 50131) GRADE II, RADIO (EN300220), SAFETY (EN60950) |
| Manufacturer | G.S.N. |
| Number of buttons on remote control | 2 |
| Remote control layout | Portable |
| Remote control button protection | "B" on button cover |
| Remote control functions | Controls, Panic |
| Type of remote control battery | 3xAAA |
| Suggested battery replacement cycle time | 1 year |
| Remote control antenna power (mW) | <10 mW |
| Modulation | ASK |
| Remote control dimensions | 156 x 44 x 25 mm (with antenna) |
| Product category | A |
