SKU
ACS-RC10
Four-button rolling code remote control
€29.00
Description

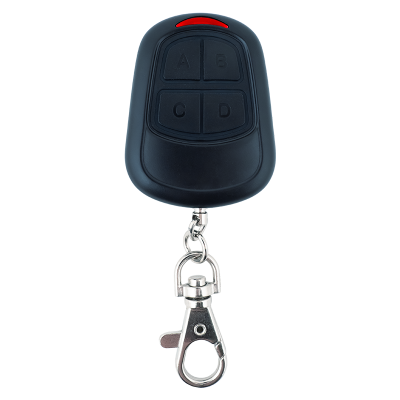

The ACS-RC10 is a four-button remote control with a four-button, wear-resistant plastic cover and a rolling code. It is included with the ACS-146R four-channel transceiver sets. Thanks to its "KEELOQ" highly secure algorithm, jump code technology, it is a perfect solution for controls and even as a panic transmitter.
The buttons labelled "A" and "B" - closer to the indicator LED - are the first and second buttons. The "C" and "D" buttons, closer to the key fob, are the third and fourth buttons.
More Information
| Voltage (V) | 12 V |
|---|---|
| Voltage type | battery |
| Power supply requirement | permanent |
| Max. operating distance | 500 m (in open space) |
| Operation frequency | 433.92 MHz |
| RF code type | Hopping code |
| RF encoding | KEELOQ |
| Antenna type | Panel antenna |
| Tamper protection | none |
| Housing material | plastic ABS |
| Environmental temperature | -20°C - +50 °C |
| Humidity tolerance (non-condensing) | max. 95% |
| IP rating | unclassified |
| IK rating | None |
| Gross weight | 26 gr |
| Package contents | 1 pc remote control with battery |
|---|---|
| Warranty | 12 months |
| Certificates | CE, EMC (EN 50130), SECURITY (EN 50131) GRADE II, RADIO (EN300220), SAFETY (EN60950) |
| Manufacturer | G.S.N. |
| Number of buttons on remote control | 4 |
| Remote control layout | Portable |
| Remote control button protection | None |
| Compatible receivers | ACS-1000R, ACS-114R, ACS-126R, ACS-146R |
| Remote control functions | Controls, Panic |
| Type of remote control battery | 1x LR23A |
| Suggested battery replacement cycle time | 1 year |
| Remote control antenna power (mW) | <10 mW |
| Modulation | ASK |
| Remote control dimensions | 52 x 40 x 10 mm |
| Product category | A |
