SKU
ACS-RC12

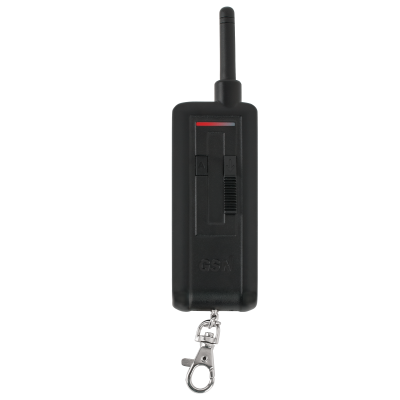

Two-button rolling code remote control
€72.00
Description
The ACS-RC12 is a two-button, wear-resistant plastic-framed, jump-code remote control with outstanding performance. ACS-1000R is included in two-channel transceiver kits. Thanks to its "KEELOQ" highly secure algorithm, jump code technology, it is a perfect solution for controls and even as a panic transmitter
The button marked 'A' - which is the free one - is the number one button.The "B", which is the button with the cover, is the number two button. For the panic function, this button is recommended because of its design to protect it from accidental presses.
More Information
| Voltage (V) | 4,5 V |
|---|---|
| Voltage type | battery |
| Power supply requirement | permanent |
| Max. operating distance | 1000 m (in open space) |
| Operation frequency | 433.92 MHz |
| RF code type | Hopping code |
| RF encoding | KEELOQ |
| Antenna type | Omni-directional antenna |
| Tamper protection | none |
| Housing material | plastic ABS |
| Environmental temperature | -20°C - +50 °C |
| Humidity tolerance (non-condensing) | max. 95% |
| IP rating | unclassified |
| IK rating | None |
| Gross weight | 93 gr |
| Package contents | 1 pc remote control with battery |
|---|---|
| Warranty | 12 months |
| Certificates | CE, EMC (EN 50130), SECURITY (EN 50131) GRADE II, RADIO (EN300220), SAFETY (EN60950) |
| Manufacturer | G.S.N. |
| Number of buttons on remote control | 2 |
| Remote control layout | Portable |
| Remote control button protection | "B" on button cover |
| Compatible receivers | ACS-1000R, ACS-114R, ACS-126R, ACS-146R |
| Remote control functions | Controls, Panic |
| Type of remote control battery | 3xAAA |
| Suggested battery replacement cycle time | 1 year |
| Remote control antenna power (mW) | <10 mW |
| Modulation | ASK |
| Remote control dimensions | 156 x 44 x 25 mm (with antenna) |
| Product category | A |
