SKU
ACS-146R
Four channel, long-range remote control transceiver set
€91.00
Description

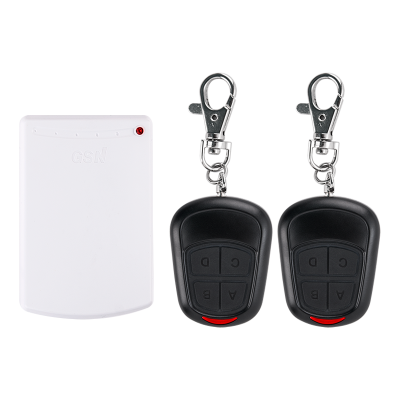

The ACS-146R is a four-channel, multi-function, long-range, rolling code remote control transceiver set. The set includes a receiver with wire antenna and 2 remote controls ACS-RC10 with key fob. Thanks to the ergonomic shape of the transmitters and the design of the buttons, it can be safely kept in your pocket. It will not give "accidental" signals.
The ACS-146R uses KEELOQ, a highly secure algorithm that prevents radio interception, unauthorized access and sabotage. In addition, the set can operate from a range of up to 500 meters in open terrain under optimal conditions. The set is capable of 5 different operating modes, making it suitable for a wide range of control applications and a reliable solution for security systems, even as a panic transmitter.
Downloads
More Information
| Voltage (V) | 24 V |
|---|---|
| Voltage type | AC/DC |
| Power supply requirement | permanent |
| Stand-by current consumption (A) | 19 mA |
| Maximum current consumtion (A) | 82 mA |
| Max. operating distance | 500 m (in open space) |
| Power consumption (W) | 0,23 W |
| Expected per year consumption (kWh) | 2 kWh |
| Receiver antenna sensitivity (dBm) | -115 dBm |
| Operation frequency | 433,.92 MHz |
| RF code type | Hopping code |
| RF encoding | KEELOQ |
| Number of channels | 4 |
| Memory capacity | 330 remote control |
| Controlled output type | relay (NO/NC) |
| Controlled output current rating | 1A @ 30V DC / 0,5A @ 125V AC |
| Controlled output timing type | monostabil, bistabil, timed |
| Controlled output timing | 1-300 sec |
| Operating modes | impulse (1sec), impulse held (max. 25 sec), panic, one-button bistable, timed |
| Compatible transmitters | ACS-RC09, ACS-RC10, ACS-RC12 |
| Power failure feedback | None |
| Antenna type | Wire antenna |
| Tamper protection | yes (tamper switch) |
|---|---|
| Dimensions | 85 x 55 x 20 mm |
| Installation area | indoor |
| Housing material | plastic ABS |
| Environmental temperature | -20°C - +50 °C |
| Humidity tolerance (non-condensing) | max. 95% |
| IP rating | unclassified |
| IK rating | None |
| Gross weight | 140 gr |
| Package contents | 1 pc RF receiver, 2 pcs remote control with battery |
| Warranty | 12 months |
| Certificates | CE, EMC (EN 50130), SECURITY (EN 50131) GRADE II, RADIO (EN300220), SAFETY (EN60950) |
| Manufacturer | G.S.N. |
| Remote control layout | Portable |
| Remote control button protection | None |
| Remote control functions | Controls, Panic |
| Type of remote control battery | 1x LR23A |
| Suggested battery replacement cycle time | 1 year |
| Remote control antenna power (mW) | <10 mW |
| Modulation | ASK |
| Remote control dimensions | 52 x 40 x 10 mm |
| Product category | A |
