AJ-84-2
Dual-channel, medium range remote control transceiver set
€42.30
Description

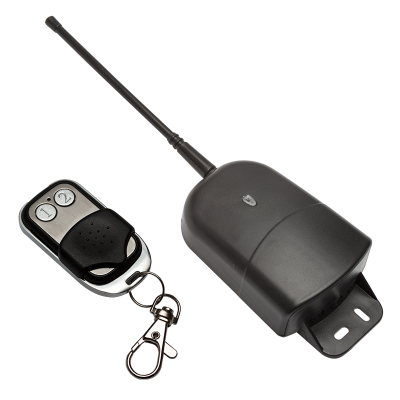

The AJ-84-2 is a dual channel, medium range remote control transceiver set. It contains one RF receiver and 1 transmitter AJ-84-C2. The set can operate up to 150 meters in open space under optimal conditions. Thanks to its rolling-code superheterodyne coding, it reliably performs its control function in safe, interference-free environments and can also receive some manufacturers' fixed-code transmitters.
The receiver unit has a sealed plastic housing and a solid antenna. When installed vertically (antenna up), it is protected against splashing water. It can also be used outdoors thanks to its wide range of ambient heat tolerance. Its multiple edge programmability, well loadable outputs and large number of upgradable transmitters make it an optimal solution for a wide range of locations.
Downloads
More Information
| Voltage (V) | 12 / 24 V |
|---|---|
| Voltage type | DC |
| Power supply requirement | permanent |
| Stand-by current consumption (A) | 7 mA |
| Maximum current consumtion (A) | 200 mA |
| Max. operating distance | 150 m (in open space) |
| Power consumption (W) | 0,09 W |
| Expected per year consumption (kWh) | 0,8 kWh |
| Receiver antenna sensitivity (dBm) | -113 dBm |
| Operation frequency | 433,.92 MHz |
| RF code type | Hopping code, Fix code |
| RF encoding | Superheterodyne |
| Number of channels | 2 |
| Memory capacity | 140 remote control |
| Controlled output type | relay (NO/NC) |
| Controlled output current rating | 10A @ 277V AC - if NO, 7A @ 277V AC -if NC |
| Controlled output timing type | monostabil, bistabil |
| Operating modes | impulse held, one-button bistable, remote control grade bistable |
| Compatible transmitters | AJ-84-C2, AJ-84-C4, AJ-84-C4M, WBK-400A-2, WBK-400A-4, WBK-401B, WBK-400B |
| Power failure feedback | None |
| Antenna type | Omni-directional antenna |
| Tamper protection | none |
| Dimensions | 125 x 75 x 35 mm (without antenna) |
|---|---|
| Installation area | indoor, outdoor |
| Housing material | plastic ABS |
| Environmental temperature | -40°C - +65°C |
| Humidity tolerance (non-condensing) | max 95% |
| IP rating | IP44 |
| IK rating | None |
| Gross weight | 96 gr |
| Package contents | 1 pc RF receiver, 1 pc remote control with battery |
| Warranty | 12 months |
| Certificates | CE, RoHS, SGS |
| Manufacturer | GIANT |
| Number of buttons on remote control | 2 |
| Remote control layout | Portable |
| Remote control button protection | Cover |
| Remote control functions | Controls |
| Type of remote control battery | 1x LR27A |
| Suggested battery replacement cycle time | 1 year |
| Remote control antenna power (mW) | 80 mW |
| Modulation | ASK |
| Remote control dimensions | 54 x 23 x 35 mm |
| Product category | A |
