0036 1 406 98 08
SKU
SMB-T009

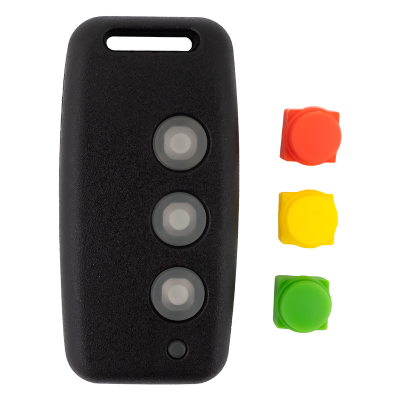

SMB-T009 Three-button rolling code remote control
€21.80
Description
The SMB-T009 is a three-button remote control with changeable buttons and battery status indication.
It is an accessory to the PF009007A one-channel transceiver set. It reliably performs its control function in a secure and disturbed environment thanks to its rolling-code secure encryption. Its ergonomic design and easily changeable buttons make it easy to use. The buttons do not overhang the transmitter casing, so there is no need to worry about accidental pressing in a pocket.
More Information
| Voltage (V) | 12 V |
|---|---|
| Voltage type | battery |
| Power supply requirement | permanent |
| Stand-by current consumption (A) | 1 µA |
| Maximum current consumtion (A) | 20 mA |
| Max. operating distance | 100 m (in open space) |
| Operation frequency | 433.92 MHz |
| RF code type | Hopping code |
| RF encoding | Encrypted |
| Power failure feedback | Yes (only LED) |
| Antenna type | Panel antenna |
| Tamper protection | none |
| Housing material | plastic ABS |
| Environmental temperature | -20°C - +60 °C |
| Humidity tolerance (non-condensing) | max. 95% |
| IP rating | IP54 |
| IK rating | None |
|---|---|
| Gross weight | 36 gr |
| Package contents | 1 pc remote control with battery |
| Warranty | 12 months |
| Certificates | CE |
| Manufacturer | P&H |
| Number of buttons on remote control | 3 |
| Remote control layout | Portable |
| Remote control button protection | None |
| Compatible receivers | PF009007A |
| Remote control functions | Controls |
| Type of remote control battery | 1x LR23A |
| Suggested battery replacement cycle time | 1 year |
| Remote control antenna power (mW) | 20 mW |
| Modulation | ASK |
| Remote control dimensions | 67 x 33 x 15 mm |
| Product category | A |
