SKU
WBK-400A-2
Two button fixed code remote control
€7.25
Description

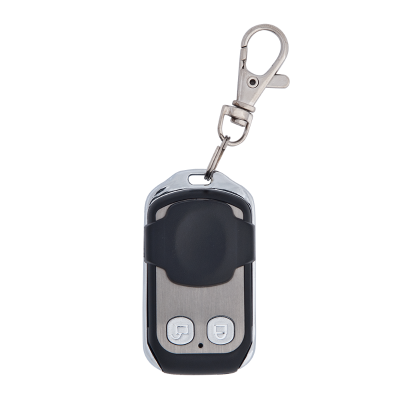

The WBK-400A-2 is a two-button, fixed code remote control with a protective cover.
It is included in several WBK-4xx remote control transceiver sets. The physical design of the transmitter protects it from "accidental" button presses, so it can be kept in a pocket or with keys. Access to the buttons is gained by pulling the cover towards the carabiner. The symbolism of the buttons can change from period to period, but always, when the remote is held with the carabiner down, the button to the left of the LED is the number one button and the button to the right is the number two button. After disassembling the transmitter, the buttons can be interchanged with the one next to them.
Downloads
More Information
| Voltage (V) | 12 V |
|---|---|
| Voltage type | battery |
| Power supply requirement | permanent |
| Operation frequency | 433.92 MHz |
| RF code type | Fix code |
| Antenna type | Panel antenna |
| Tamper protection | none |
| Housing material | metal and plastic ABS |
| Environmental temperature | -20°C - +55 °C |
| Humidity tolerance (non-condensing) | max. 95% |
| IP rating | unclassified |
| IK rating | None |
| Gross weight | 29 gr |
| Package contents | 1 pc remote control with battery |
| Warranty | 12 months |
|---|---|
| Certificates | CE |
| Manufacturer | YLI |
| Number of buttons on remote control | 2 |
| Remote control layout | Portable |
| Remote control button protection | Cover |
| Compatible receivers | AJ-84-2, WBK-400-1-12, WBK-400-2-12/24, WBK-401-1-12, WBK-401-2-12/24 |
| Remote control functions | Controls, Panic |
| Type of remote control battery | 1x LR27A |
| Suggested battery replacement cycle time | 1 year |
| Remote control antenna power (mW) | 10 mW |
| Modulation | ASK |
| Remote control dimensions | 58 x 33 x 14 mm |
| Product category | A |
