SKU
XH-SGC-01

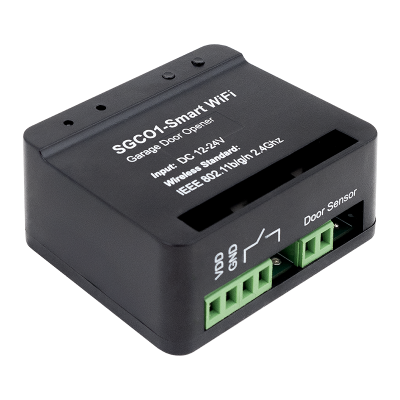

1 channel WiFi+Bluetooth gate control module (XHouse IOT compatible)
€26.30
Description
The XH-SGC-01 is a 1-channel gate control module that can be controlled and monitored by a smart device via WiFi network or Bluetooth - within range.
A direct control button is available on the device, but all functions can be accessed from the app.
For example, there are multiple time schedules to set the module to run in a predefined, automated way, not excluding the possibility to manually intervene in the controls from anywhere at any time.
It is also from here that additional parameters can be set to assist the user in basic and clear operation.
Due to its accessibility and power supply solutions, the possible applications of the gate control module are almost unlimited!
Downloads
More Information
| Voltage (V) | 12 - 24 V |
|---|---|
| Voltage type | DC |
| Power supply requirement | permanent |
| Stand-by current consumption (A) | 60 mA |
| Maximum current consumtion (A) | 90 mA |
| Communication | BLE 2.4 GHz, Wifi 2.4 GHz |
| Number of channels | 1 |
| Number of controlled outputs | 1 |
| Controlled output type | 1 relay (IR: NO-COM) |
| Controlled output current rating | 10A @ 277V AC (NO), 7A @ 277V AC (NC) |
| Controlled output timing type | monostable |
| Number of controller inputs | 1 |
| Types of control inputs | NC |
| Operating modes | impulse (1sec) |
| Power failure feedback | None |
|---|---|
| Antenna type | Panel antenna |
| Tamper protection | none |
| Dimensions | 66 x 51 x 31 mm |
| Installation area | indoor |
| Housing material | plastic ABS |
| Environmental temperature | -20°C - +60°C |
| Humidity tolerance (non-condensing) | max. 90 % |
| IP rating | unclassified |
| Gross weight | 302 gr |
| Package contents | mounting bracket, control unit, sensor unit, screw set |
| Programming | mobil application |
| Warranty | 12 months |
| Certificates | CE, RoHS |
| Product category | F |
