0036 1 406 98 08
SKU
DT821F-DK

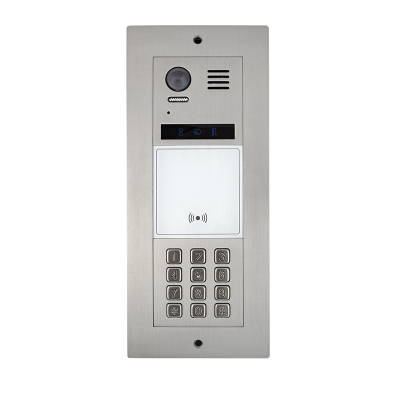

Outdoor unit with illuminated code-lock and integrated RFID reader (13,56MHz + 125 kHz) IP55
€196.00
Description
Intercoms are an essential accessory in the home. Our range includes single or multi-family, audio or video intercoms, as well as a variety of expansion modules to create the most suitable solution for you. 2EASY is an easy to install and connect 2-wire intercom system. The BUS intercom system can control both audio and video systems, and thanks to its various plug-in modules, the system can be expanded in many different ways. All devices can be connected to any 2EASY system, so there are no compatibility problems.
DT821F-DK is a modular interphone system. This is a preassambled model that consists of a outdoor video modul, code lock modul and a 3x1 mounting modul.
The system requires 1 pair of CAT6E twisted pair wires for proper operation. Do not double the wires!
The 2Easy outdoor units can operate the lock with 12V DC 250mA. For this purpose, we offer a range of low current consumption electric strikes.
 |
Downloads
More Information
| Product category | F |
|---|---|
| Power Supply | 24V DC |
| Power consumption | 5 W |
| Type | Video |
| Wiring type | 2 wires (CAT6E cable is REQUIRED!) |
| Number of apartments | 128 |
| Physical button(s) | Yes |
| Camera type | 1/2.7’’ CMOS 2MP 170°látószög |
| Keypad type | Physical |
| RFID type | Em 125 Khz, Mifare 13,56Mhz |
|---|---|
| Output type(s) | Száraz kontaktus, vagy feszültség kimenet ( 250 mA @12 V DC) |
| Protection rating | IP55 |
| Installation mode | Flush |
| Dimensions | 315 x 132 x 50 mm |
| Working temperature | -20°C ~ +55°C |
| Warranty (for legal entities) | 24 months |
| Certificate | CE |
| Manufacturer | V-tec |
