0036 1 406 98 08
SKU
DP100-INOX-RS

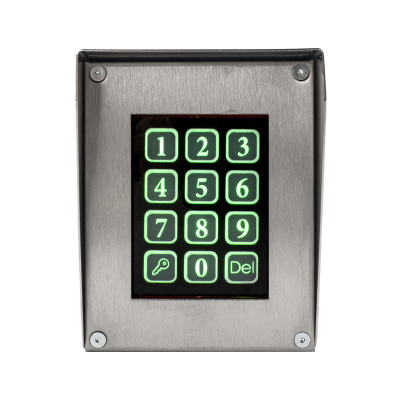

DP RFID reader with digital keyboard and rain cover
€75.00
Description
DP100-INOX-RS is a digital RFID reader with digital keyboard and rain cover. Inegrated EEPROM duplicator, wich helps connecting the device with a digital DP controller unit. Ideal alongside DP system, for backdoor use etc.
Intercoms are an essential accessory in the home and everyone knows how to use them. Our range includes intercoms for single or multi-family homes, audio or video, as well as a number of expansion modules to create the best design for you. The CODEfon and DP digital intercoms are very popular in our country thanks to their ease of use and installation.
Downloads
More Information
| Product category | E |
|---|---|
| Type of device | RFID reader, code-lock |
| Casing | metal case |
| Type of readable cards | EM |
| Readable frequency | 125 kHz |
| Keyboard | Yes |
| PIN length | 4-digit |
| Installation | surface-mounted |
| Installation environment | indoor |
| Environmental protection rating | no rating |
| Vandalproof protection | metal case |
| Capacity | 1194 cards |
| Method of security backup | removable memory chip, memory can be copied |
| Methods of adding users | via built-in keyboard |
| Wiegand input bit rating | none |
| Wiegand output bit rating | none |
| Power supply | 12 V AC |
| Power consumption | min: 70 mA, max: 1,07A |
| Dimensions | 11,5 x 15 x 6 cm |
| Reading range | ~5 cm |
|---|---|
| Language of internal menu | none |
| LED | Yes |
| Buzzer | Yes |
| Keyboard lighting | yes (cannot be turned off) |
| Number of controllable doors | 1 |
| Lock output type | dry contact (relay, NO/NC/COM) / magnetic lock controller |
| Lock output load capacity | max: 1A |
| Inputs | push button |
| Tamper protection | no |
| Opening methods | card or PIN |
| Opening signal length (if used in timed mode) | 0 ~ 255 sec |
| Bistable mode | No |
| Access control functions | normal |
| Events that cause alarm | no alarm |
| Alarm timing | no |
| Display | No |
| Other properties | DP intercom accessory, card learning mode |
| Warranty (for legal entities) | 12 months |
| Manufacturer | DP Digital |
