0036 1 406 98 08
SKU
DT607C-S1(V2)
2EASY Video outdoor unit, surface mounted IP54
€83.00
Description
Intercoms are an essential accessory in the home. Our range includes single or multi-family, audio or video intercoms, as well as a variety of expansion modules to create the most suitable solution for you. 2EASY is an easy to install and connect 2-wire intercom system. The BUS intercom system can control both audio and video systems, and thanks to its various plug-in modules, the system can be expanded in many different ways. All devices can be connected to any 2EASY system, so there are no compatibility problems.

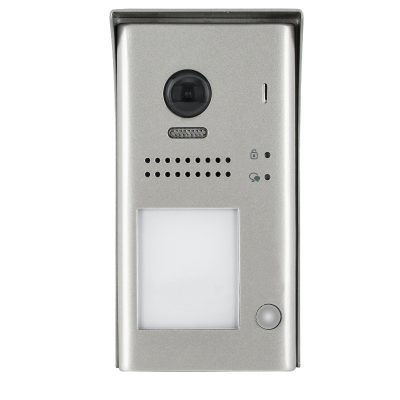

The DT607C-S1(V1) is a single camera outdoor unit for the 2EASY intercom system. Its 2 Mpx Fisheye camera provides excellent colored image and viewing angles, while its aesthetic stainless steel housing provides a stylish look and protection. Unlike most DT607 models, this device does not have an RFID reader, so the door cannot be opened with a card.
 |
 |
 |
The 2Easy outdoor units can operate the lock with 12V DC 250mA. For this purpose, we offer a range of low current consumption electric strikes.
 |
The system requires 1 pair of CAT6E twisted pair wires for proper operation. Do not double the wires!
More Information
| Product category | F |
|---|---|
| Power Supply | 24V DC |
| Power consumption | 160 mA |
| Type | Video |
| Wiring type | 2 wires (CAT6E cable is REQUIRED!) |
| Number of apartments | 1 |
| Physical button(s) | Yes |
| Camera type | Színes, 1/2.7” 2MP (170°-os) |
| Output type(s) | Száraz kontaktus, vagy feszültség kimenet ( 250 mA @12 V DC) |
|---|---|
| Protection rating | IP54 |
| Installation mode | Surface |
| Dimensions | 176 x 90 x 27 mm |
| Working temperature | -20°C ~ +55 °C |
| Warranty (for legal entities) | 24 months |
| Certificate | CE |
| Manufacturer | V-tec |
