0036 1 406 98 08
SKU
R20A
IP intercom outdoor unit (IP65)
€233.00
Description
Akuvox R20A intercom outdoor unit.
Intercoms are an indispensable accessories of the home. Our range includes single or multi-family, audio or video intercoms, as well as a variety of expansion modules to create the most suitable solution for you.
IP intercoms provide high quality picture and sound, and the system is extremely simple to set up. It is recommended for all locations where the intercom system wiring can be installed, so that the use of UTP cables is not a problem.
The Akuvox R20A is a single tenant outdoor unit compatible with all Akuvox devices.

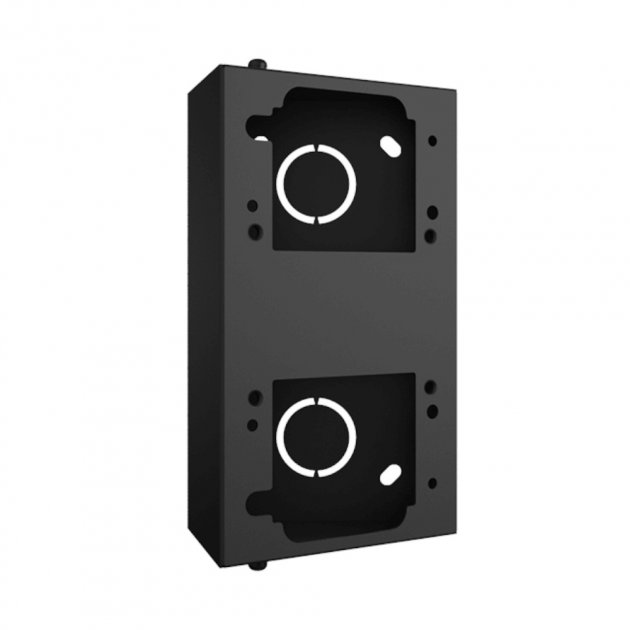

Compatible mounting frame:
|
|
Downloads
More Information
| Product category | E+ |
|---|---|
| Power Supply | 12V DC ; PoE |
| Power consumption | max 12W |
| Type | Video |
| Wiring type | RJ45 Ethernet |
| Number of apartments | 1 |
| Physical button(s) | Yes |
| Camera type | 1/3” CMOS 3MP 120° angle |
| RFID type | Em 125 Khz, Mifare 13,56Mhz |
| Output type(s) | Relay: 2 × Dry contact, NO/NC output, Monostable/bistable mode, |
|---|---|
| Protection rating | IP65 |
| Installation mode | Surface |
| Other properties | 2 × push button input, 1 × Wiegand output, Web management, SIP communication |
| Dimensions | 145 x 85 x 27.5 mm |
| Working temperature | -20°C ~ +65°C |
| Humidity tolerance | 10~90% |
| Warranty (for legal entities) | 24 months |
| Certificate | CE |
| Manufacturer | Akuvox |
