0036 1 406 98 08
SKU
R28A
IP intercom outdoor unit (IP65)
€613.00
Description
Akuvox R28A intercom outdoor unit.
Intercoms are an indispensable accessories of the home. Our range includes single or multi-family, audio or video intercoms, as well as a variety of expansion modules to create the most suitable solution for you.
IP intercoms provide high quality picture and sound, and the system is extremely simple to set up. It is recommended for all locations where the intercom system wiring can be installed, so that the use of UTP cables is not a problem.
The Akuvox R28A is a condominium intercom outdoor unit, with a large LCD screen, compatible with all Akuvox devices.
The device can not be installed by itself, the purchase of a mounting bracket is required!
24 months warranty.

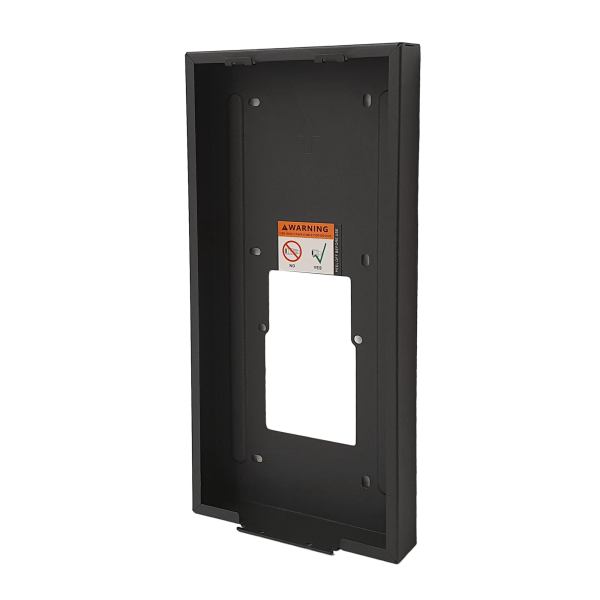

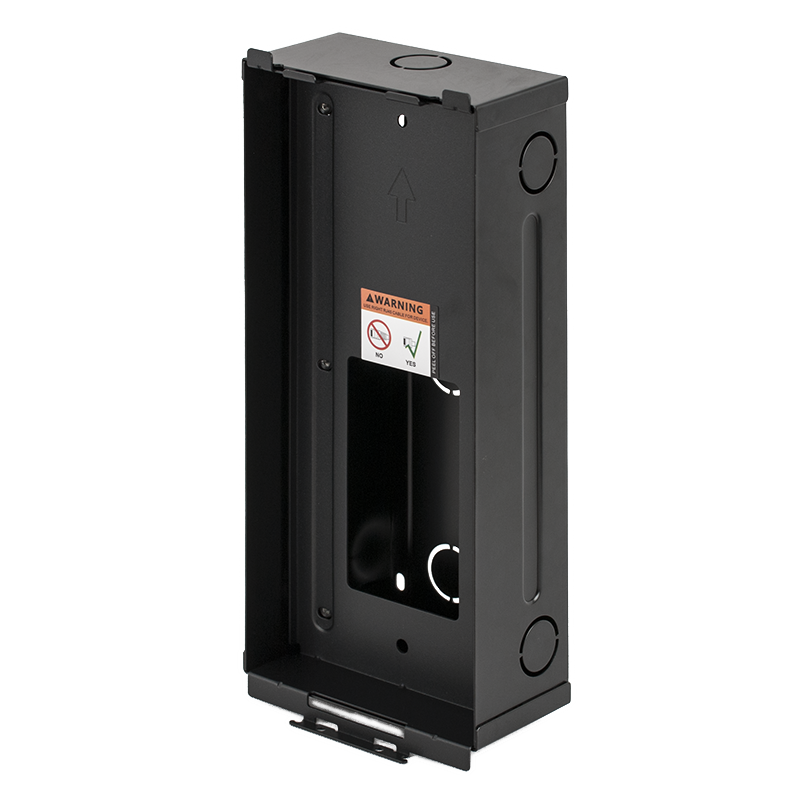

Compatible mounting brackets:
 |
 |
Downloads
More Information
| Product category | E+ |
|---|---|
| Power Supply | 12V DC ; PoE |
| Power consumption | <30W |
| Type | Video |
| Wiring type | RJ45 Ethernet |
| Number of apartments | unlimited |
| Physical button(s) | No |
| Display type | 4,3" color TFT LCD |
| Camera type | 1/2.7”, CMOS 2 MP 116° angle |
| Keypad type | Physical |
| RFID type | Em 125 Khz, Mifare 13,56Mhz |
|---|---|
| Output type(s) | Relay: 3 × Dry contact, NO/NC output, Monostable/bistable mode | Power output: 12V DC/0,8A |
| Protection rating | IP65 |
| Installation mode | Surface, Flush |
| Other properties | 2 × push button input, 1 × Wiegand output, Web management, SIP communication |
| Dimensions | Recessed: 280x130x68mm, Surface mounted: 280x130x38mm |
| Working temperature | 40°C ~ +55°C |
| Humidity tolerance | 10~90% |
| Warranty (for legal entities) | 24 months |
| Certificate | CE |
| Manufacturer | Akuvox |
